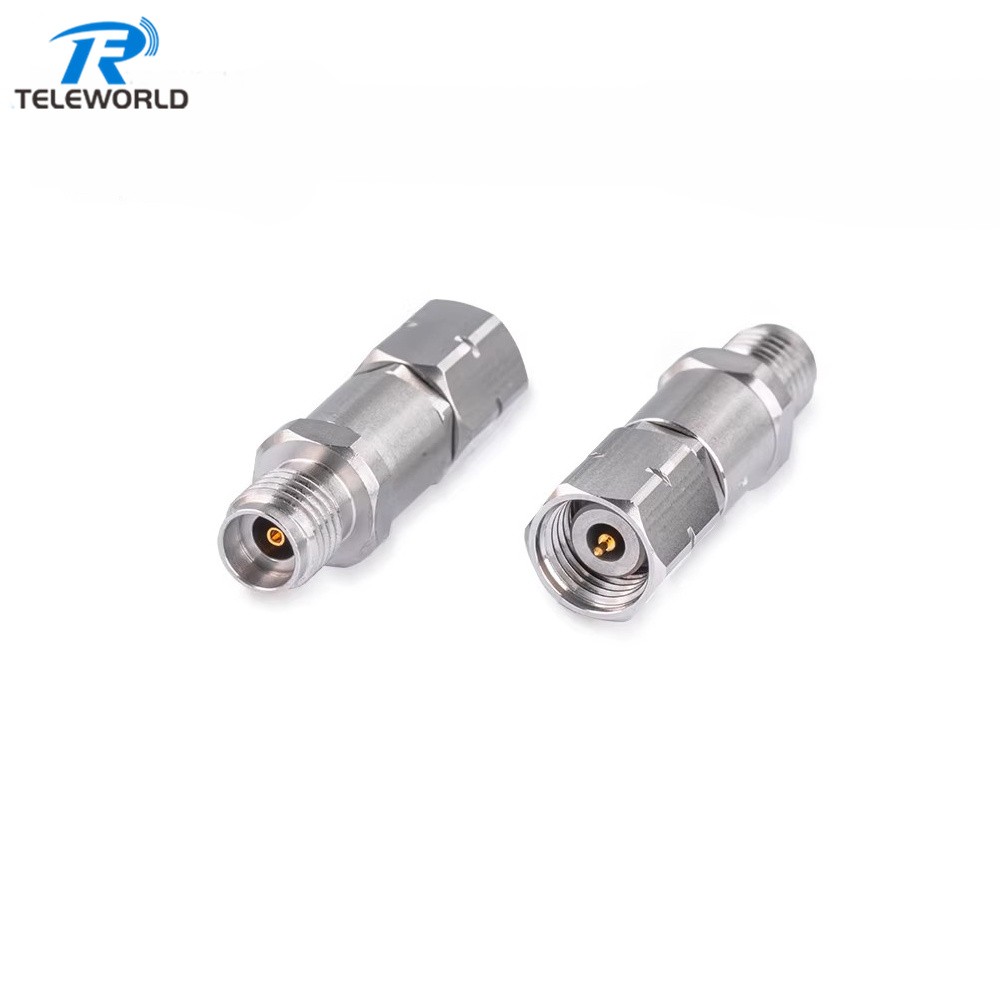

2.4mm to 3.5mm Adapter 33GHz 50ohm
2.4mm-3.5mm Adapter
Frequency up to 33GHz
Factory supply with fast delivery
Welcome to send inquiry

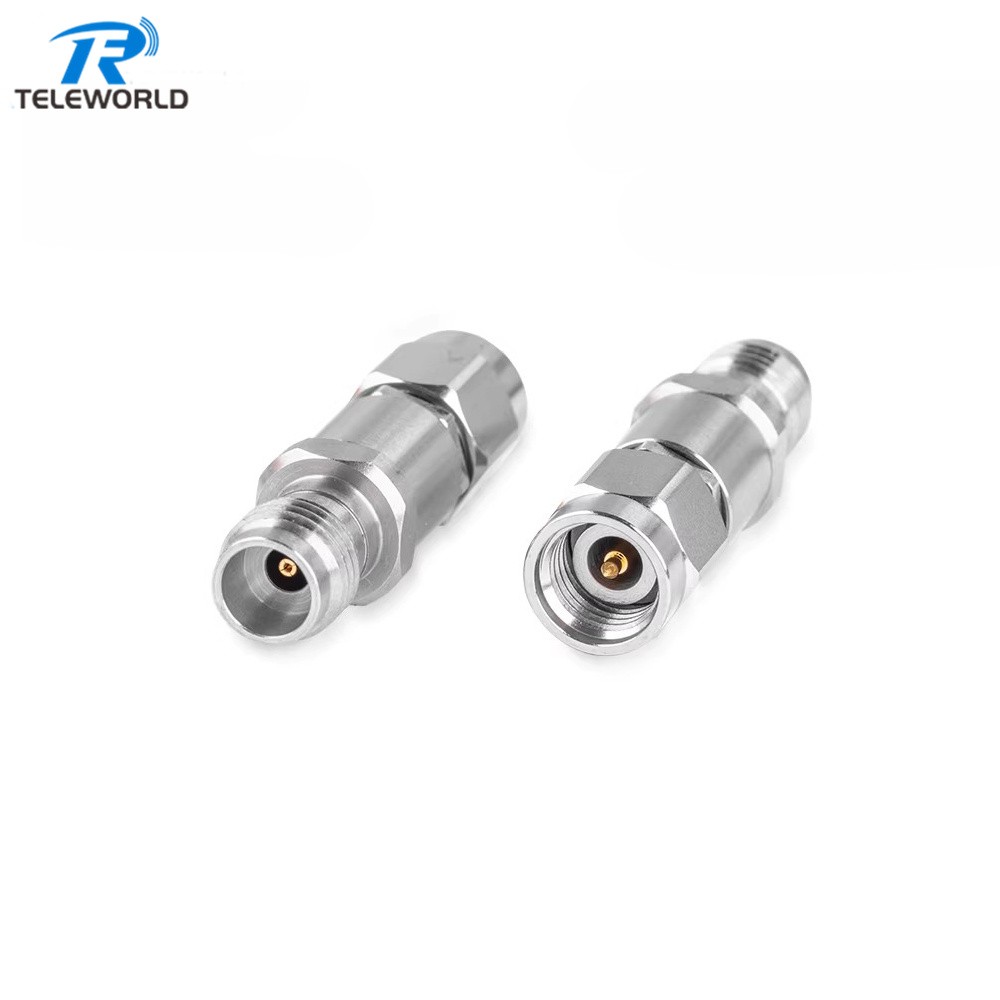

2.4mm male to 3.5mm female

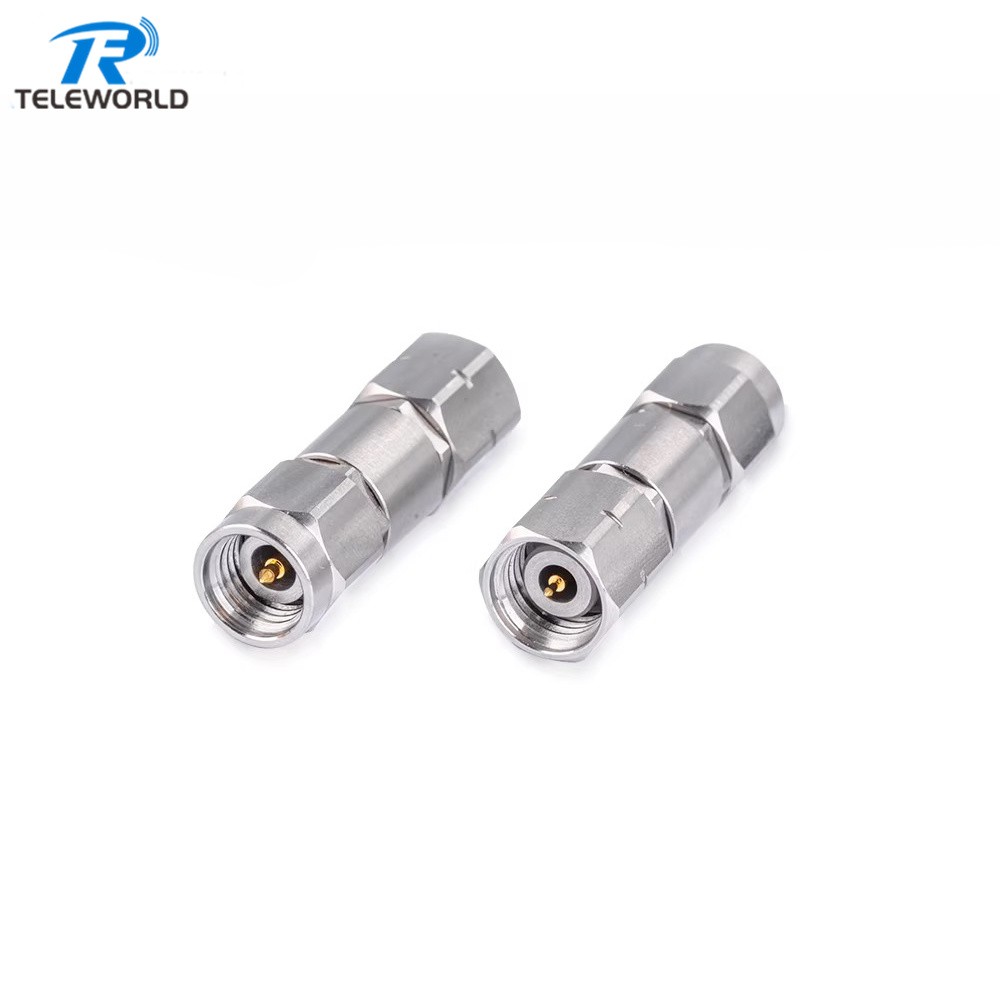

2.4mm male to 3.5mm male

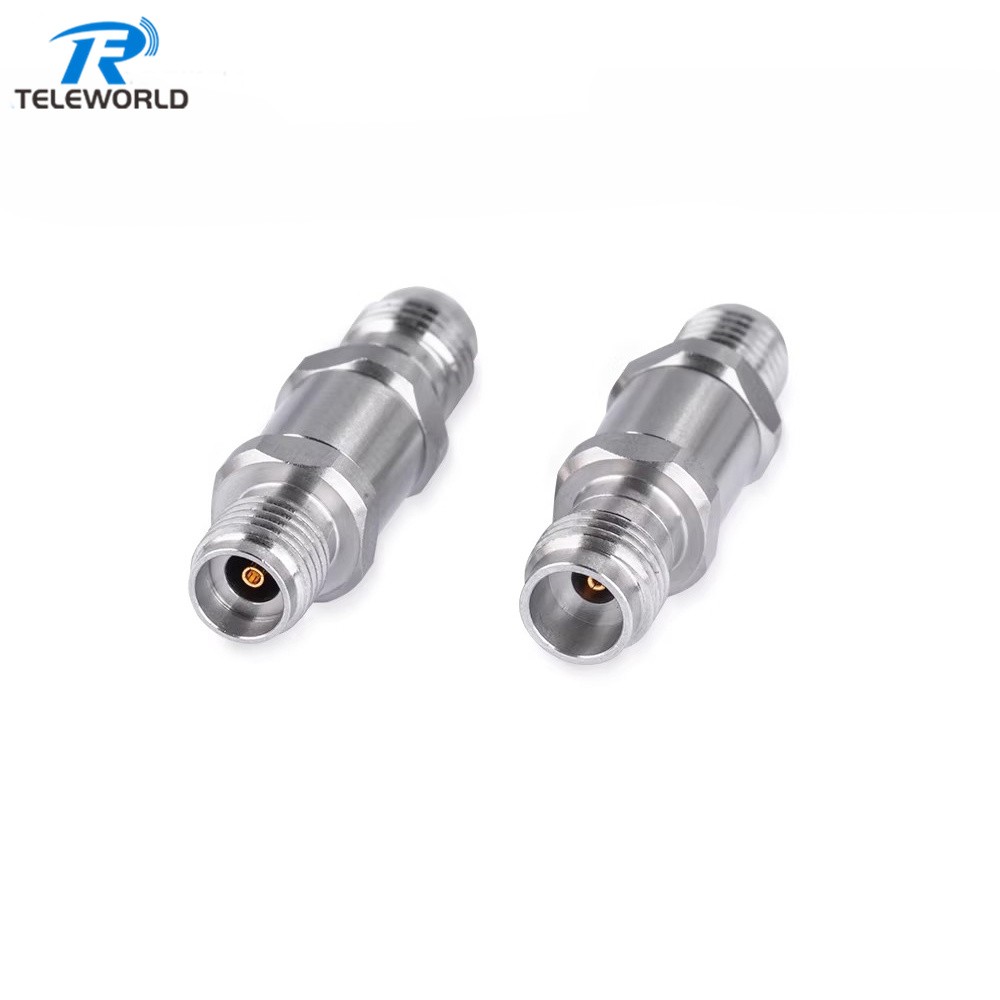

2.4mm female to 3.5mm female
2.4mm female to 3.5mm male
Adapter 3.5mm
3.5mm Precision coaxial connector for microwave applications.the maximum frequency is
33GHz.
•Design in accordance with: IEEE Std 287 TM -2007
Standard materials and finish
•Center conductor:beryllium copper,gold plated
•Insulator:PEI
•Outer conductor:Stainless steel,Passivated
Electrical Characteristics
•Characteristic Impedance:50Ω
•Frequency range:DC-33GHz
•VSWR: 1.15:1 max
•Insulation resistance: 5000MΩmin
•Test voltage:1000V
Mechanical
•Coupling torque:1.69N• max
•Mating cycles: 500cycles min
Environmental
•emperature range: -60℃~+165℃
