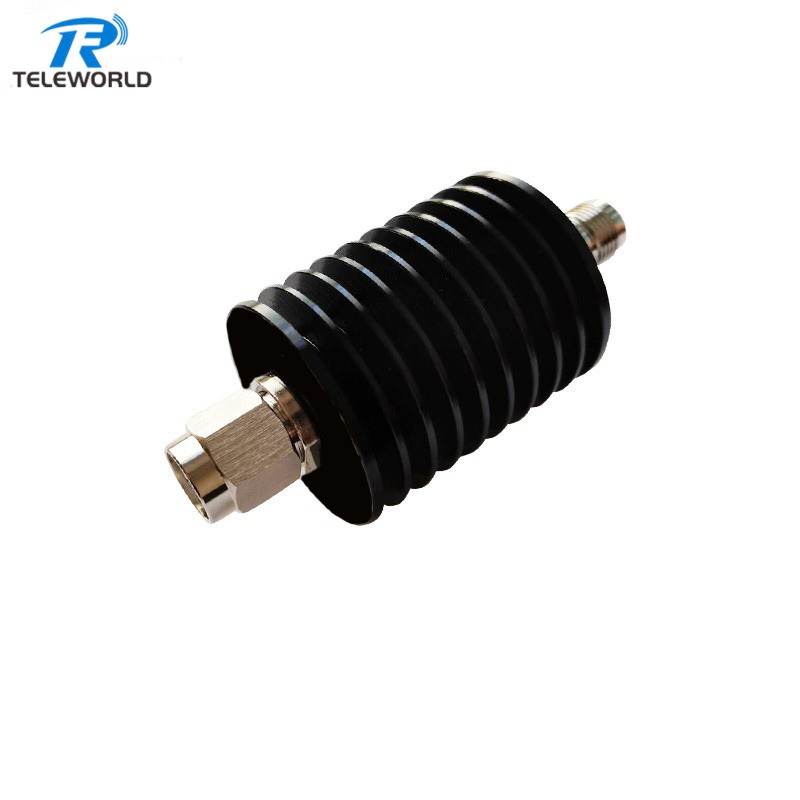

25W 4.3-10 Coaxial Attenuator 3GHz 4GHz 6GHz 1dB 2dB 3dB 4dB 5dB 6dB 7dB 8dB 9dB 10dB 15dB 20dB 30dB 40dB 50ohm
TWAmD-25-6-XX
Frequency 0-6GHz
SMA,N,BNC,TNC,7/16,4.3/10 connector support
Attention range from 1-40dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on coaxial attenuator,termination load ,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.ompetitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Fixed attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| DC-6G, 25W 4.3-10 coaxial Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 3/4/6GHz |
| VSWR | ≤1.25 | POWER RATING | 25W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | |||
| Attenuation | 1-9,10,15,20,30,40dB available, and 1-10dB.±0.8dB,15-40dB±1dB | ||
