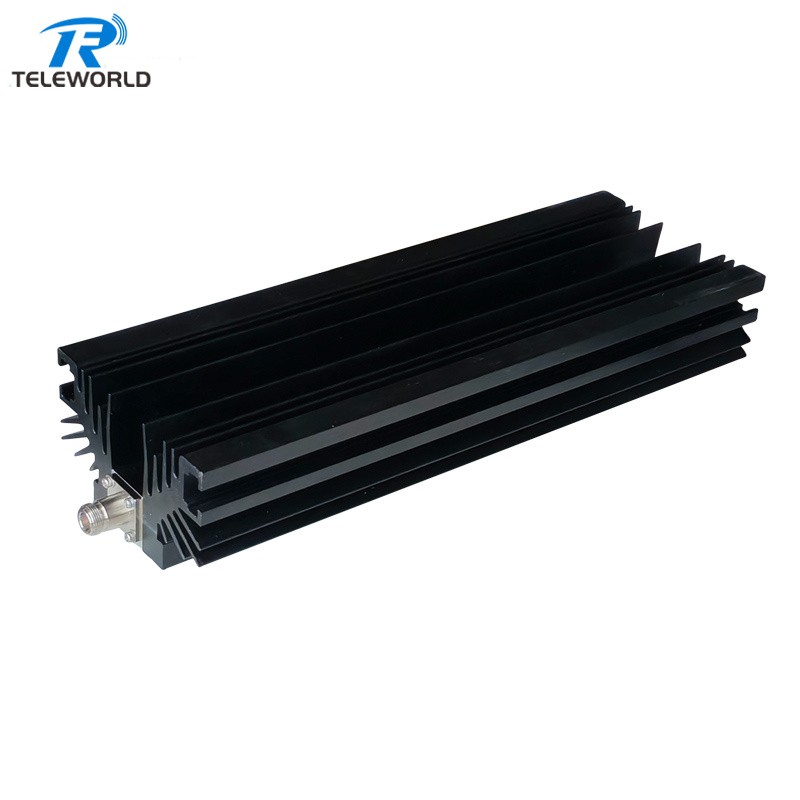

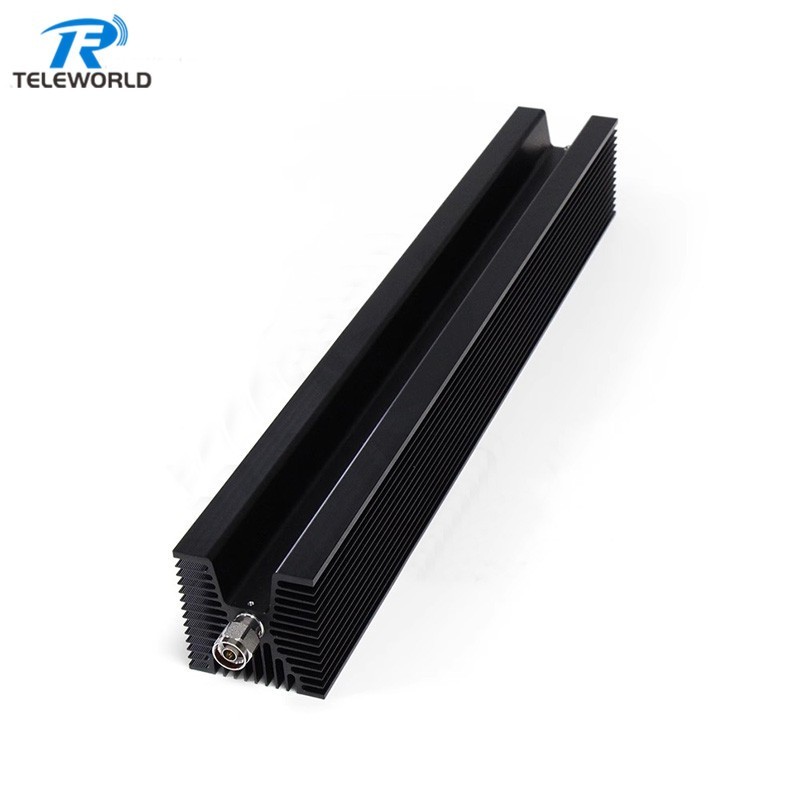

500W RF Termination Dummy Load 1Ghz 2GHz 3GHz 4GHz 6GHz 12GHz 50Ohms
TWTN-500-3G
Frequency1/2/ 3/4/6GHz optional
N and DIN connector optional
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,Termination load ,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Dummy Load is a device used to simulate an electrical load during testing. In an RF System a dummy load is used to simulate an antenna. By using a dummy load instead of an actual antenna, the transceiver can be tested and configured without radiating radio waves.
| 1/2/3/4/6GHz optional, 500W RF Terminations Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 3GHz (UP to 12GHz optional) |
| VSWR | 3GHz≤1.3 | POWER RATING | 500W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | |||
| Connector | N and DIN Connector optional | ||
