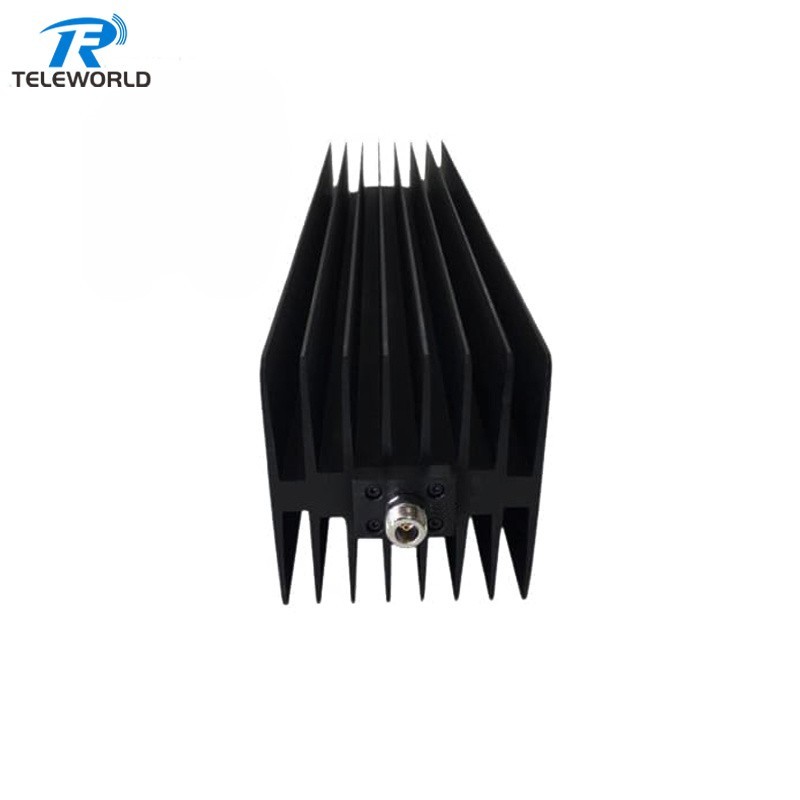

500W Coaxial RF Terminator Dummy load Terminations 8GHz 10GHz 12GHz 18GHz 50ohm
TWTN-500-18G
Frequency18GHz optional
N and DIN connector optional
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,Termination load ,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Dummy Load is a device used to simulate an electrical load during testing. In an RF System a dummy load is used to simulate an antenna. By using a dummy load instead of an actual antenna, the transceiver can be tested and configured without radiating radio waves.
| 18GHz optional, 500W RF Terminations Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 18GHz |
| VSWR | 8GHz≤1.25 | POWER RATING | 500W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | |||
| Connector | N and DIN Connector optional | ||
