50W NEX10 Attenuator 3GHz 4GHz 6GHz 3dB 6dB 10dB 15dB 20dB 30dB 40dB 50dB 50ohm
TWANEX10-50-3-XX
Frequency 3/4/6GHz optional
Attention range from 1-50dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,Termination load,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support

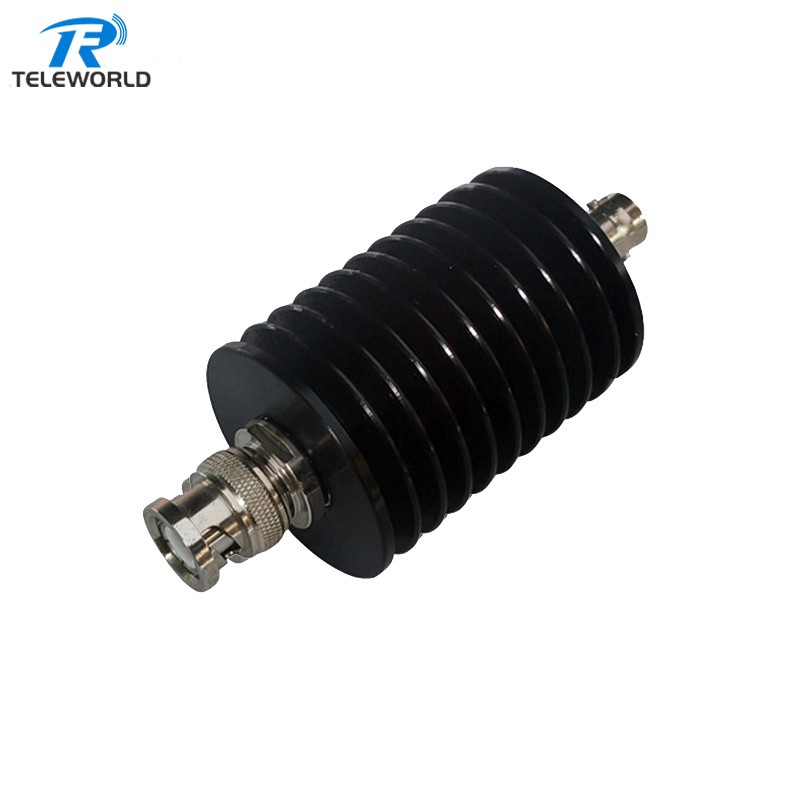

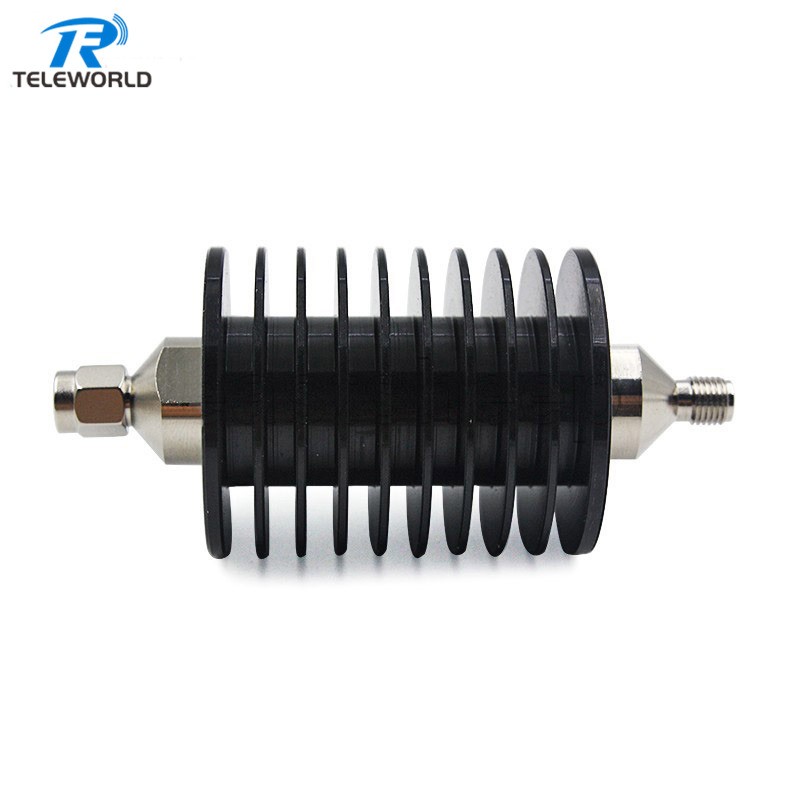

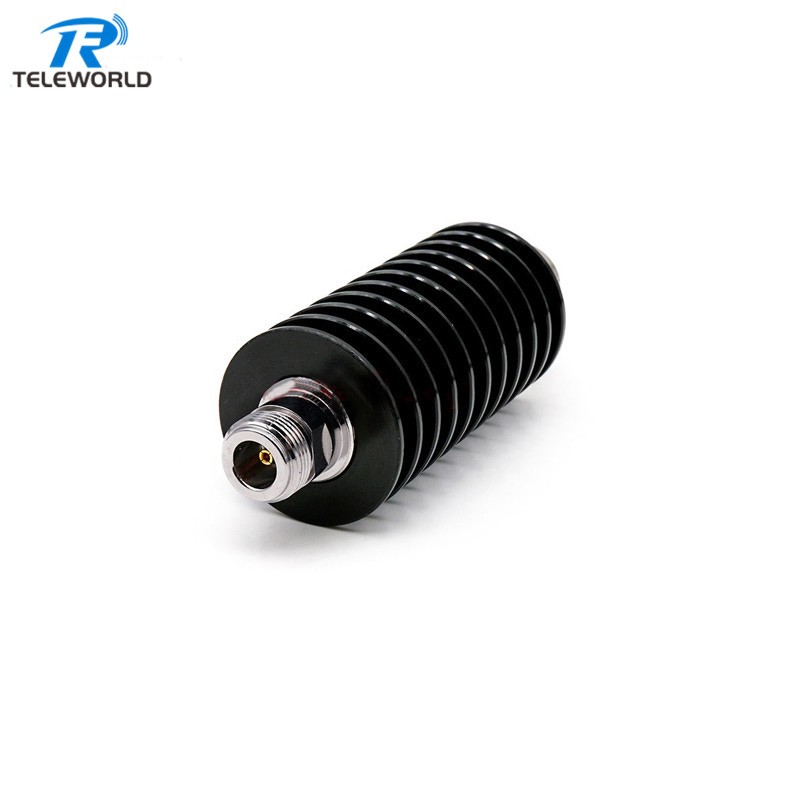

(NEX10 to NEX10/N/SMA Attenuator Connector all optional)
Fixed attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| DC-3/4/6G, 50W NEX10 coaxial Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 3/4/6GHz |
| VSWR | 4G≤1.2 6G≤1.3 | POWER RATING | 50W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | |||
| Attenuation | 3,6,10,20,30,40dB available, and 3-30dB±1dB 40-50dB ±1.5dB | ||
