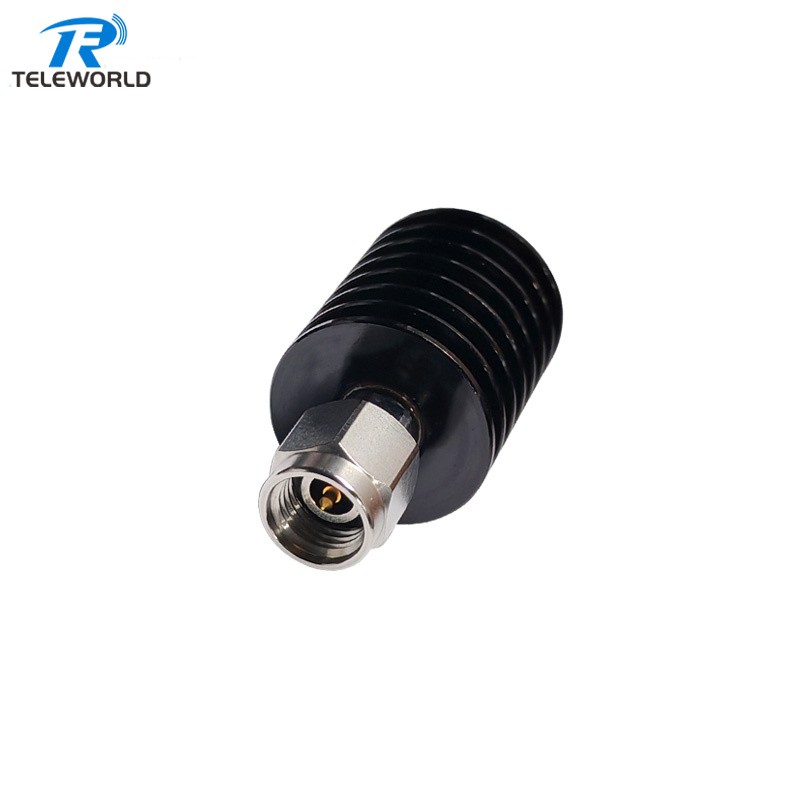

5W 2.92mm RF Coaxial Attenuator 32GHz 40GHz 1dB 2dB 3dB 5dB 6dB 10dB 20dB 30dB 40dB 50ohm
TWA2.92-5-40G
Frequency 0-40GHz
Attention range from 1-30dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,Termination load,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Fixed attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| 50ohm DC-40GHz, 5W 2.92mm Fixed Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 40GHz |
| VSWR | ≤1.35 | POWER RATING | 5W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | |||
| Attenuation | 1,2,3,4,5,6,7,8,9,10,15,20,30,40dB available, and 1-10dB.±0.8dB,15-30dB±1.5dB | ||
