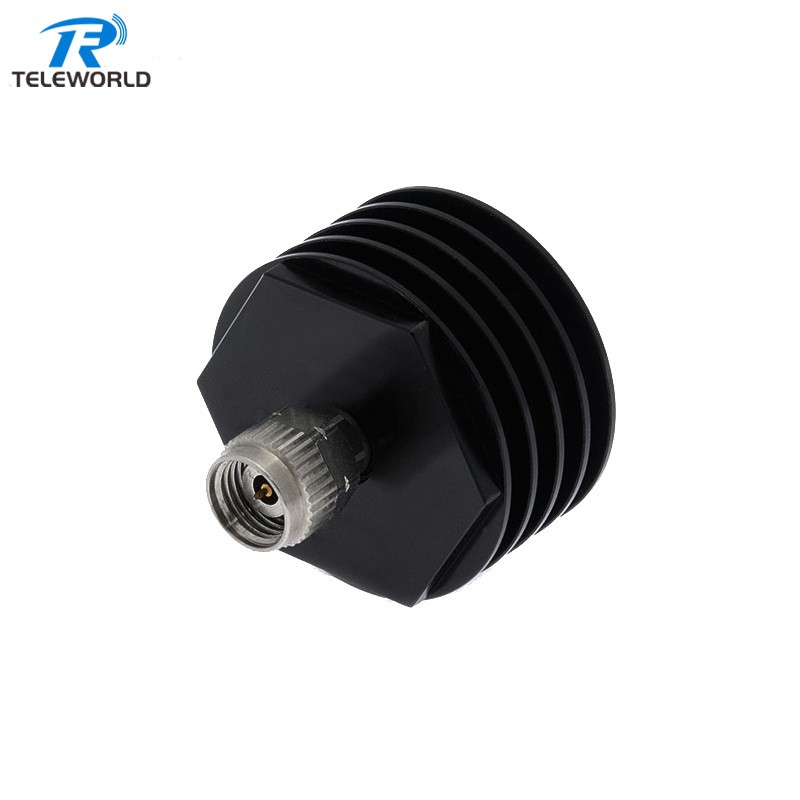

Bidirectional 5W 2.4mm Attenuator 50GHz 3dB 6dB 10dB 20dB 30dB 50ohm
TWA2.4-5-50-XX
Frequency 0-50GHz
Attention range from 1-30dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,RF Termination load ,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Fixed Attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| 50ohm DC-50GHz, 5W 2.4mm Fixed Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 50GHz |
| VSWR | ≤1.35 | POWER RATING | 5W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | |||
| Attenuation | 1,2,3,4,5,6,7,8,9,10,15,20,30dB available, and 1-10dB.±1.2dB,20-30dB±1.5dB | ||
