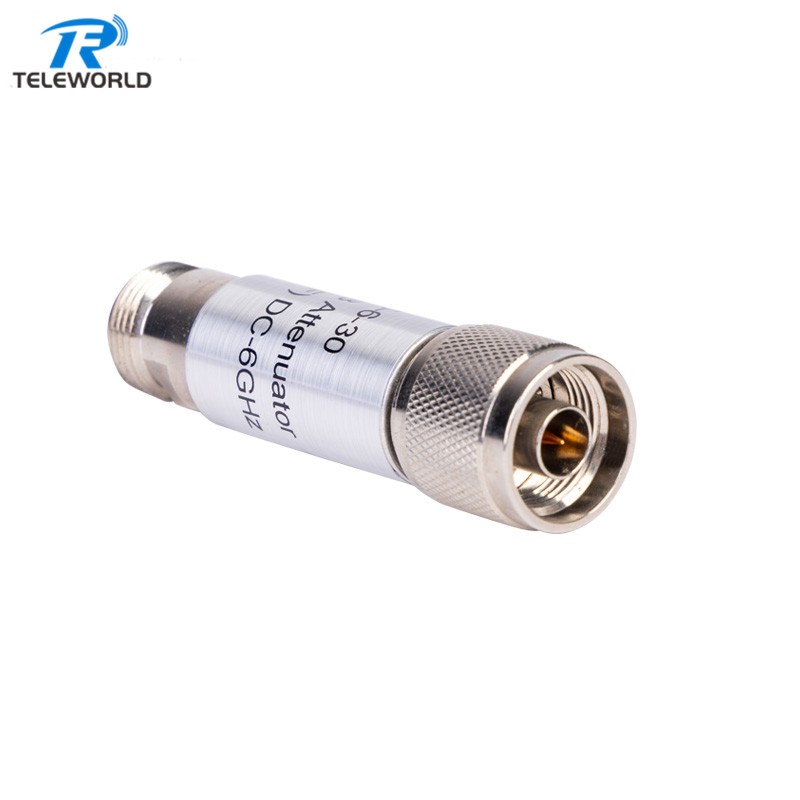

N type 5W RF Coaxial Fixed Attenuator 3GHz 4GHz 1dB 2dB 3dB 5dB 6dB 10dB 20dB 30dB 40dB 50dB 50ohm
TWAN-5-3-XX
Frequency 0-3/4GHz
SMA,N,BNC,TNC,7/16,4.3/10 connector support
Attention range from 1-50dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Fixed attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| 50ohm DC-3/4GHz, 5W N Coaxial Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 3/4GHz |
| VSWR | ≤1.25 | POWER RATING | 5W |
| TEMPERATURE RANGE | -30°C to +85°C | ||
| Dimensions: | φ30*58 mm | ||
| Attenuation | 1,2,3,4,5,6,7,8,9,10,15,20,30.40dB available, and 1-9dB.±0.6dB,10-40dB±1dB | ||
