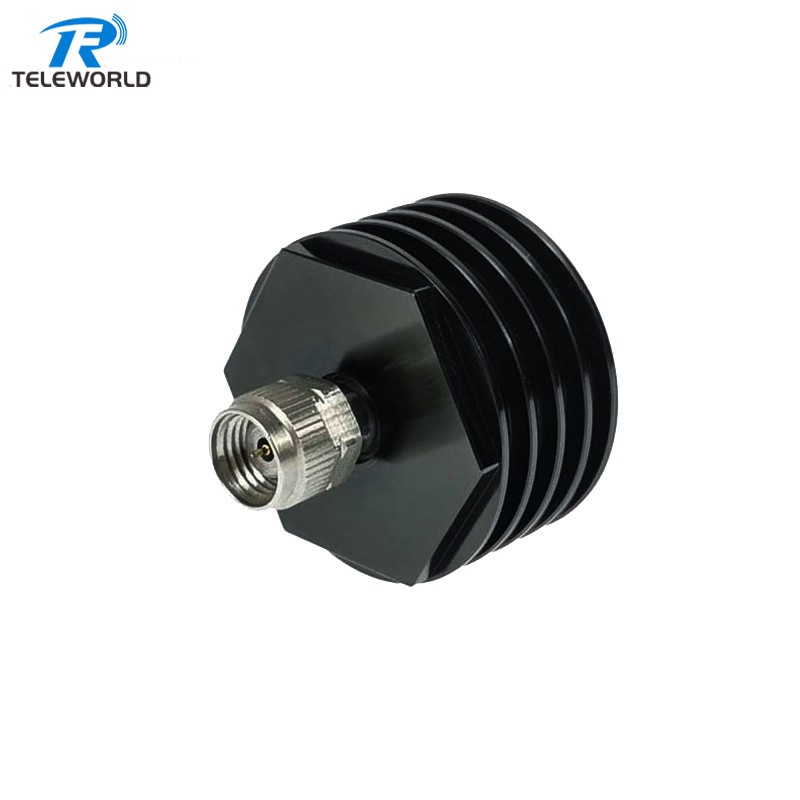

5W 1.85mm 67GHz RF Coaxial Fixed Attenuator 1dB 2dB 3dB 5dB 6dB 10dB 20dB 30dB
TWA1.85-5-67G
Frequency DC-67GHz
Attention range from 1-30dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on Coaxial Attenuator,Termination load,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support
Fixed attenuators are placed in signal paths to reduce power transmission and are set at a fixed attenuation by symmetrical resistive networks that follows a T, L or Pi configuration. Their configuration can either be in waveguide, in surface mount or coaxial, and depending on their application, they can either be directional or bidirectional.
Applications:
Attenuators are generally used in radio, communication and transmission line applications to weaken a stronger signal.
| 50ohm DC-67GHz, 5W 1.85mm Coaxial Fixed Attenuator Technical Specifications: | |||
| NORMINAL IMPENDANCE | 50Ω | FREQUENCY RANGE | DC to 67GHz |
| VSWR | ≤1.4 | POWER RATING | 5W |
| TEMPERATURE RANGE | -55°C to +125°C | ||
| Dimensions: | |||
| Attenuation | 1,2,3,4,5,6,7,8,9,10,20,30dB available, and 1-10dB.-1/+1.5dB,20dB -1.2/+1.5dB,30dB -1.5/+2dB | ||
