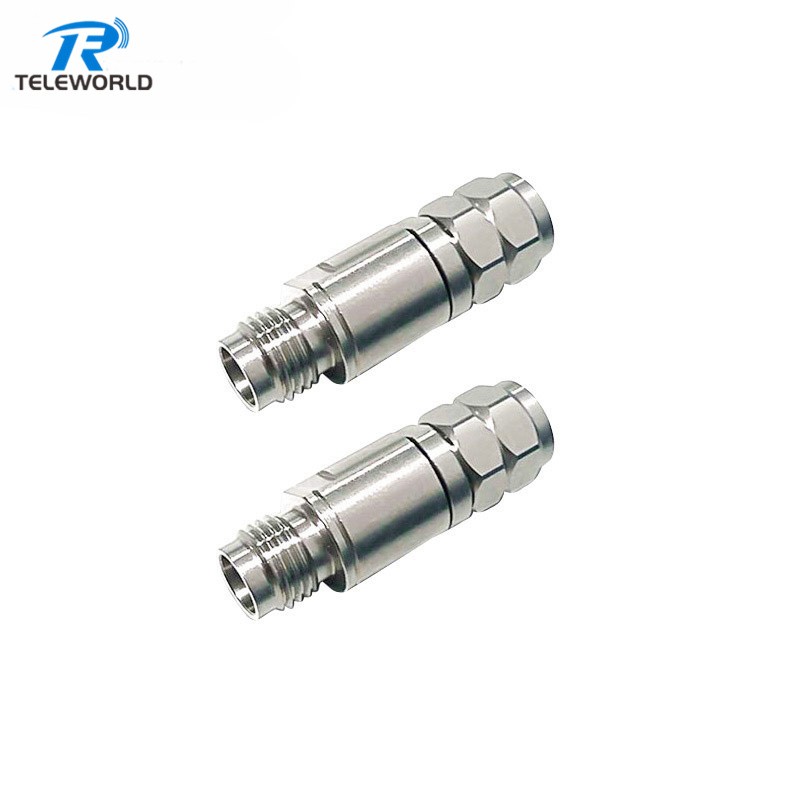

TNC DC Block 50V 3GHz 50ohms
TWDT-50V-6G
Frequency 3/4/6GHz optional
Factory supply with fast delivery
Welcome to send inquiry
DC Blocks are coaxial components that prevent the flow of direct current (DC) while offering minimum interference to RF signals.
They have series capacitors on the input and output of the attenuator that allows RF signal to pass but block DC from passing through.
| DC-3GHz TNC 50V DC Block Technical Specifications | |
| Norminal Impendance | 50ohm |
| Frequency range | DC-3GHz |
| VSWR | 3GHz≤1.25 |
| Temperature range | -45℃ to 85℃ |
| Maximum Voltage | 50V |
| Insertion Loss | 3GHz≤0.7dB |
