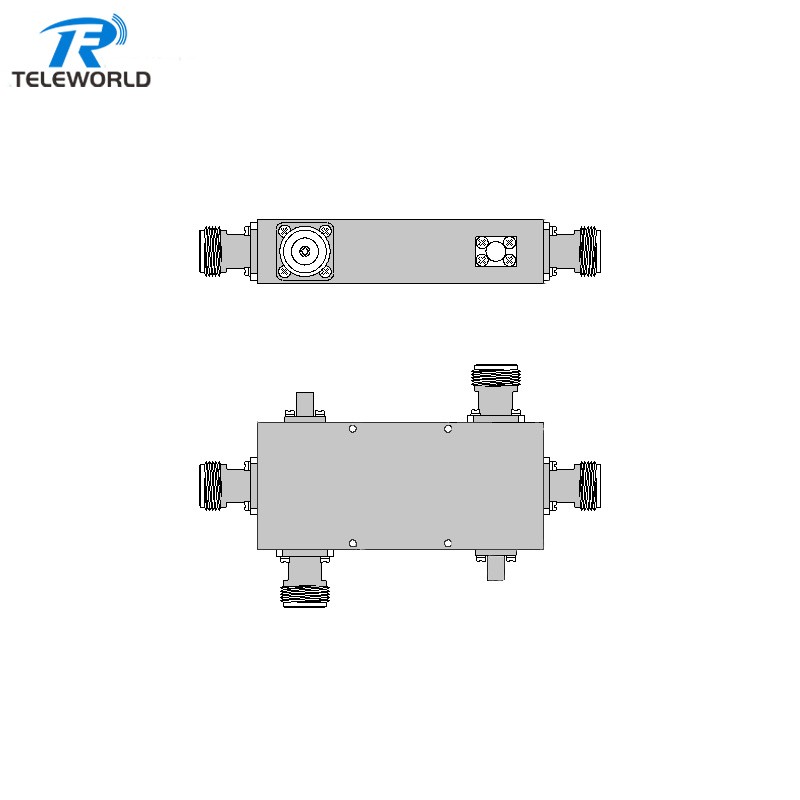

1-6GHz 50W Directional Coupler 40dB1000-6000MHz N female 50ohm
TWDC-30N10-2-8G
Directional couplers are an important type of signal processing device. Their basic function is to sample RF signals at a predetermined degree of coupling, with high isolation between the signal ports and the sampled ports — which supports analysis, measurement and processing for many applications.
| SN | Parameters | Specifications |
| 1 | Frequency Range | 1000～6000 MHz |
| 2 | Insertion Loss | ≤ 0.5dB |
| 3 | VSWR Primary | 1.2/Max. 1.3 |
| 4 | VSWR Secondary | 1.2/Max. 1.3 |
| 5 | Directivity | Min.16dB |
| 6 | Nominal Coupling | 40±1.2dB(20dB 30dB optional) |
| 7 | Impedance | 50 Ohms |
| 8 | Input/Output Connectors | N-Female |
| 9 | Power Rating | 50W |
| 11 | Operation Temperature | -45℃ ~ +85℃ |
| 12 | Surface Finishing | Sandblasting natural color conductive oxide |
