1.Good Quality with reasonable price
2.CNC producing machines
3.ROHS
4.Quick Delivery Time
5.ODM, OEM

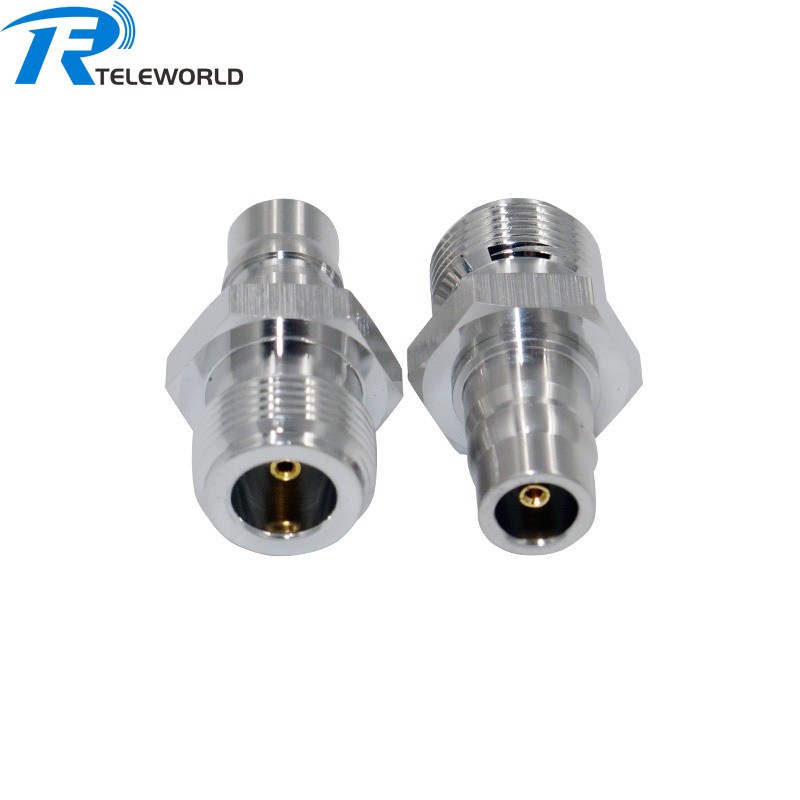

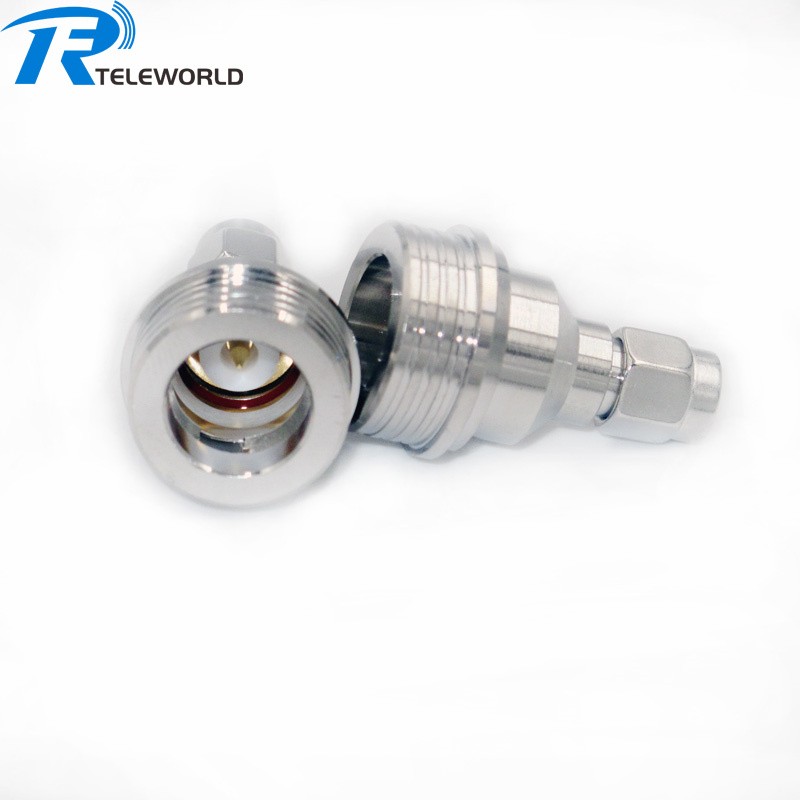

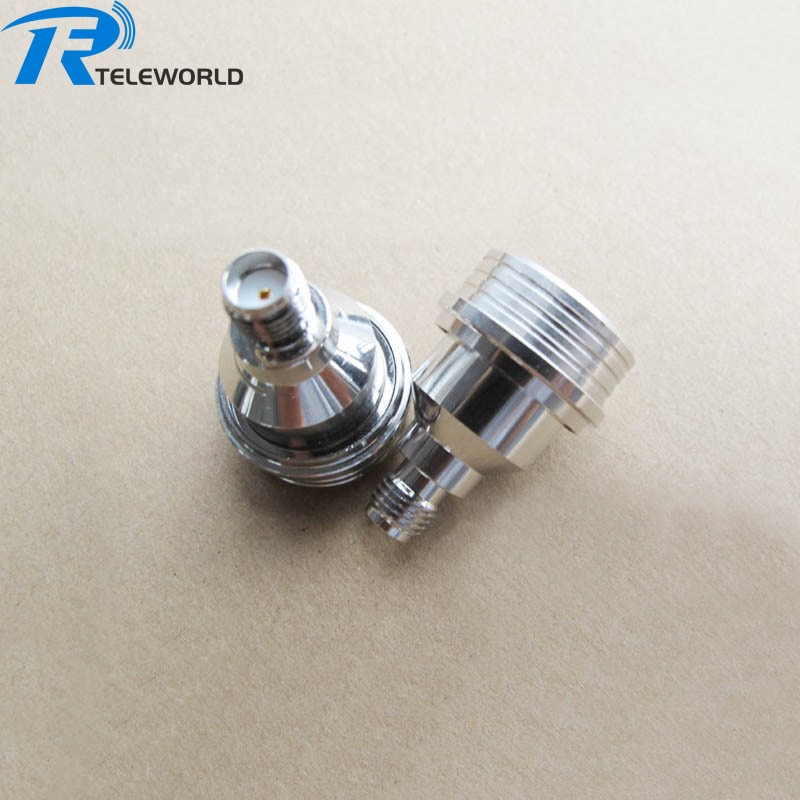

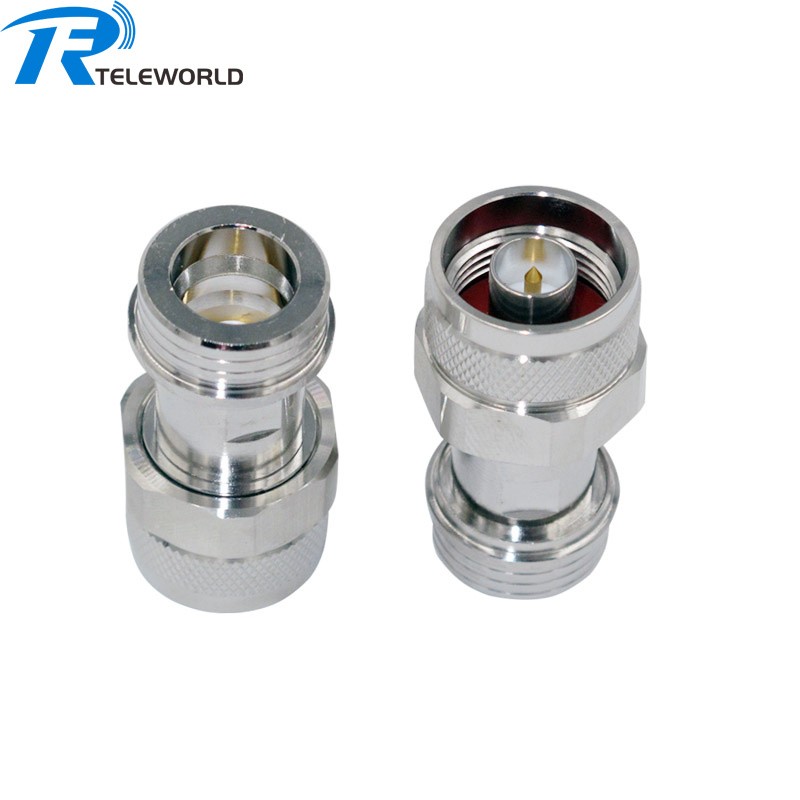

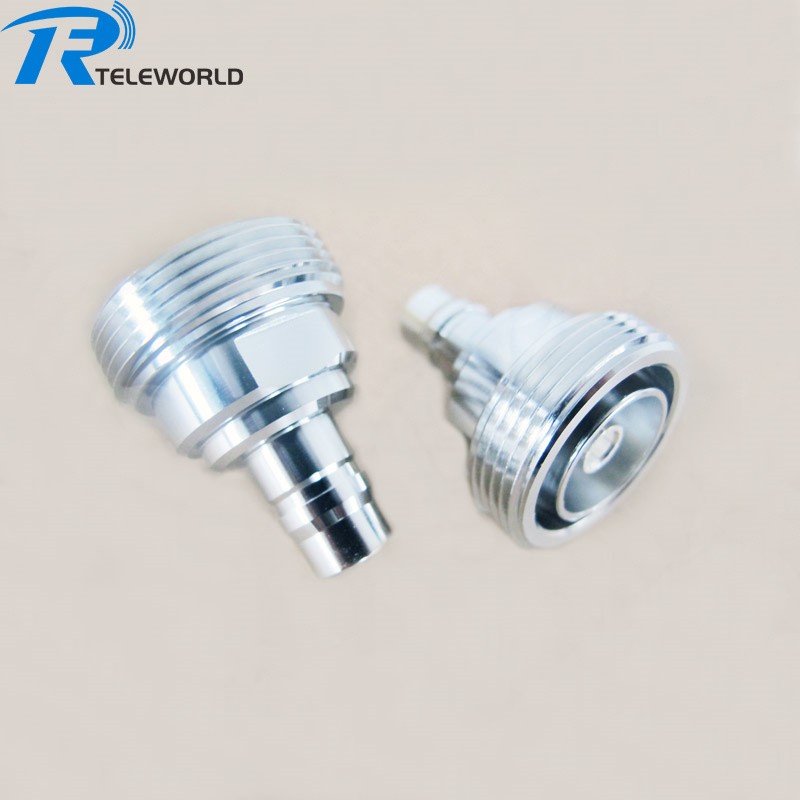

Adapter is the basic product that used in the connection between the instrument cable with different interface. There are two kinds of them: within-type adapter and inter-type adapter. It has the same technical special characteristic with same class product. Our company designs and produces various adapters with all kinds of specifications. They have frequency range and low VSWR characteristics
Temperature Range | -55~+155°C (PE Cable -40~+85°C) | |
Impedance | 50Ω | |
Frequency Range | DC-11GHz | |
Insertion Loss | less than or equal to 0.24dB/6GHz | |
Withstanding Voltage | 2500V r.m.s at sea level | |
Working Voltage | 1000Vr.m.s at sea level | |
Insulation Resistance | ≥ 5000 MΩ | |
Durability | ≥ 500(cycles) | |
Contact resistance: | CenterContact ≤ 1mΩ | |
Outer Contact ≤ 1mΩ | ||
Voltage Standing Wave Ratio: | Straight | ≤ 1.15/6GHz |
Right angle | ≤ 1.25/6GHz |
