2W 10W SMA RF Variable Attenuator 3GHz 6GHz 0.1dB 1dB 10dB 60dB 70dB 90dB 50ohms
Frequency 3GHz/6GHz
SMA,N connector support
Average power 2W/10W optional
Attention 10dB 60dB 90dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Professional Factory service on coaxial attenuator,termination load ,power range from 1-2000W with frequency up to 67GHz
1.High quality with fast delivery
2.Professional R&D team
3.OEM&ODM service support
4.Competitive price
As the connector support SMA/N/BNC/TNC/DIN/4.3-10 optional
welcome to send inquiry,we will do our best to support

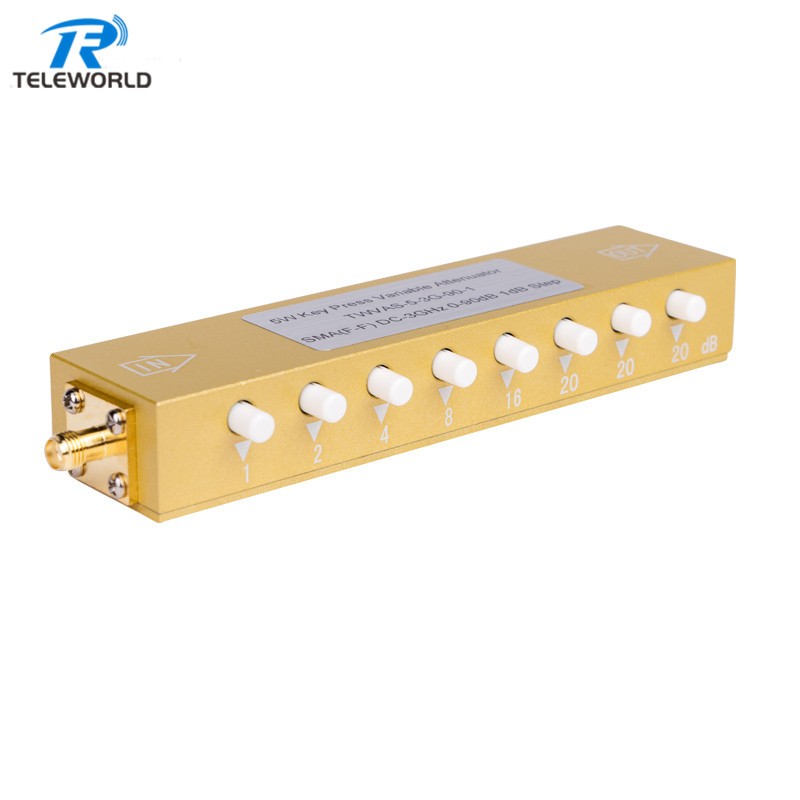

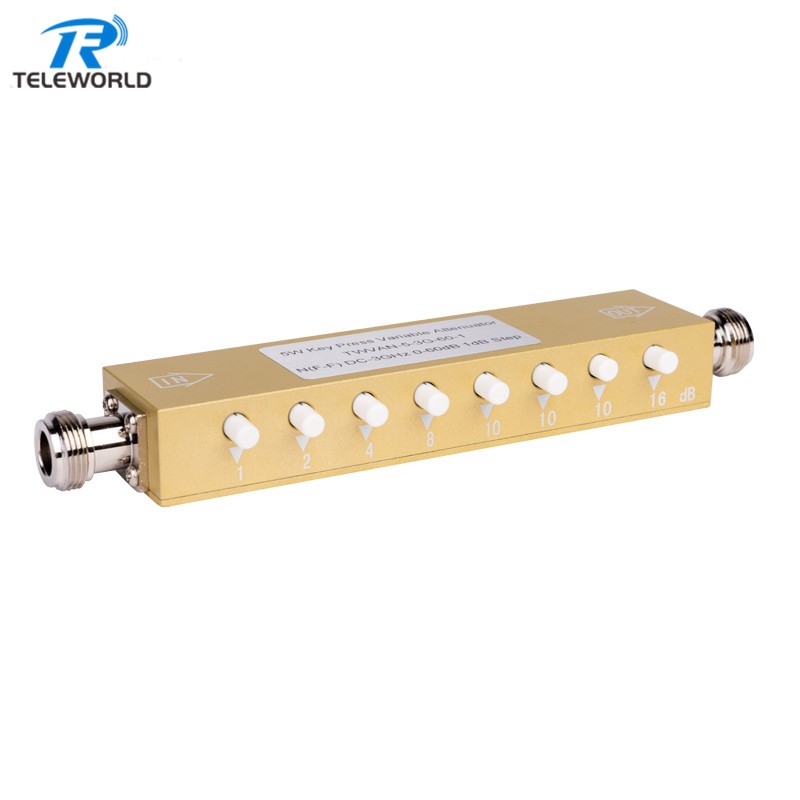

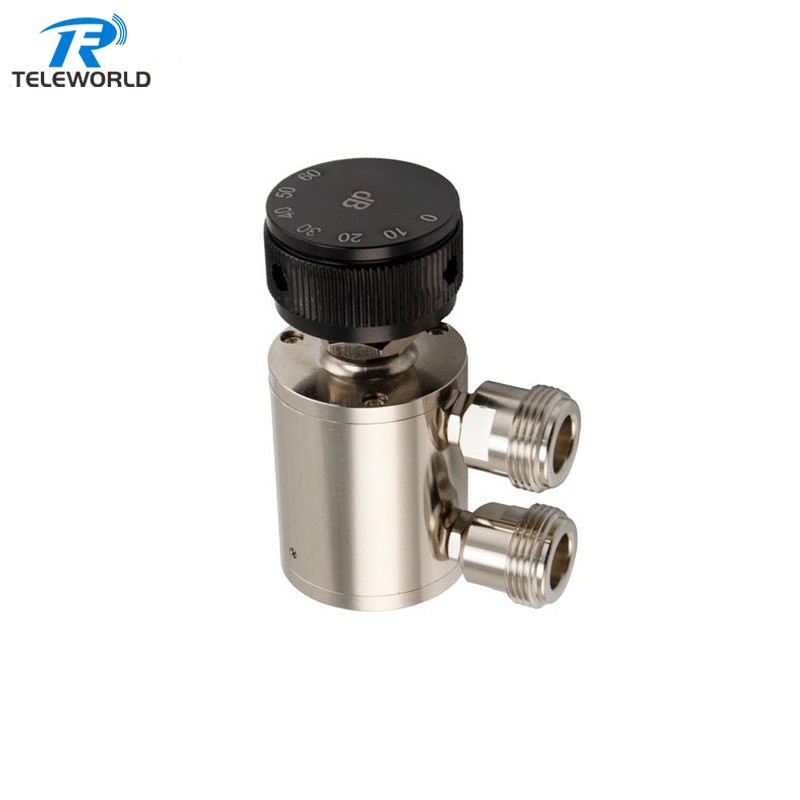

Step attenuators are very much similar to fixed attenuators. The only difference is that one can select an attenuation value in a step attenuator by using digital control or manually by push-buttons or by a rotary switch.
Variable attenuators are used in laboratories, when it is necessary to obtain small value of voltage or current for testing purposes.
| Model No. | Frequency(GHz) | Attenuation | Max VSWR | Insertion loss(dB) | Attenuation Accuracy(dB) |
| Step Size | |||||
| TWVASm-2-3-1-0.1 | DC-3 | 0-1dB in 0.1dB steps | 1.3 | ≤0.5 | ±0.3 |
| TWVASm-2-6-1-0.1 | DC-6 | 1.4 | ≤1.0 | ±0.4 | |
| TWVASm-2-3-10-1 | DC-3 | 0-10dB in 1dB steps | 1.3 | ≤0.5 | ±0.5 |
| TWVASm-2-6-10-1 | DC-6 | 1.4 | ≤1.0 | ±0.5 | |
| TWVASm-2-3-60-10 | DC-3 | 0-60dB in 10dB steps | 1.3 | ≤0.5 | ±0.5(<50dB) |
| ±0.8 or ±3% | |||||
| TWVASm-2-6-60-10 | DC-6 | 1.4 | ≤1.0 | (≥50dB) | |
| TWVASm-2-3-90-10 | DC-3 | 0-90dB in 10dB steps | 1.3 | ≤0.5 | ±0.5(<50dB) |
| ±3.5%(≥50dB) |
