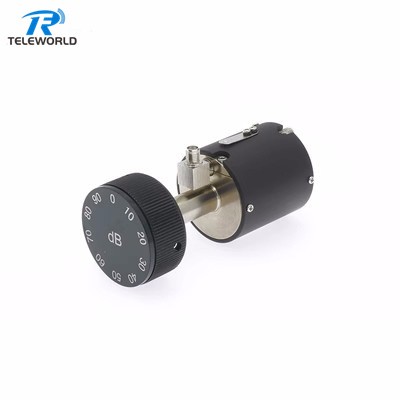

2W SMA Variable Attenuator 80dB 18GHz 10dB step 50ohm
Frequency 18GHz
SMA connector support
Attention 10dB 60dB 90dB,Customized support
Factory supply with fast delivery
Welcome to send inquiry
Step attenuators are very much similar to fixed attenuators. The only difference is that one can select an attenuation value in a step attenuator by using digital control or manually by push-buttons or by a rotary switch.
Variable attenuators are used in laboratories, when it is necessary to obtain small value of voltage or current for testing purposes.
| Model No. | Frequency(GHz) | Attenuation | Max VSWR | Insertion loss(dB) | Attenuation Accuracy(dB) |
| Step Size | |||||
| TWVASm-10-80-18G | DC-8 | 0-90dB in 10dB steps | 1.4 | ≤1 | ±1 |
| DC-12 | 1.5 | ≤1.2 | ±1.5 | ||
| DC-18 | 1.6 | ≤1.5 | ±2.5 |
