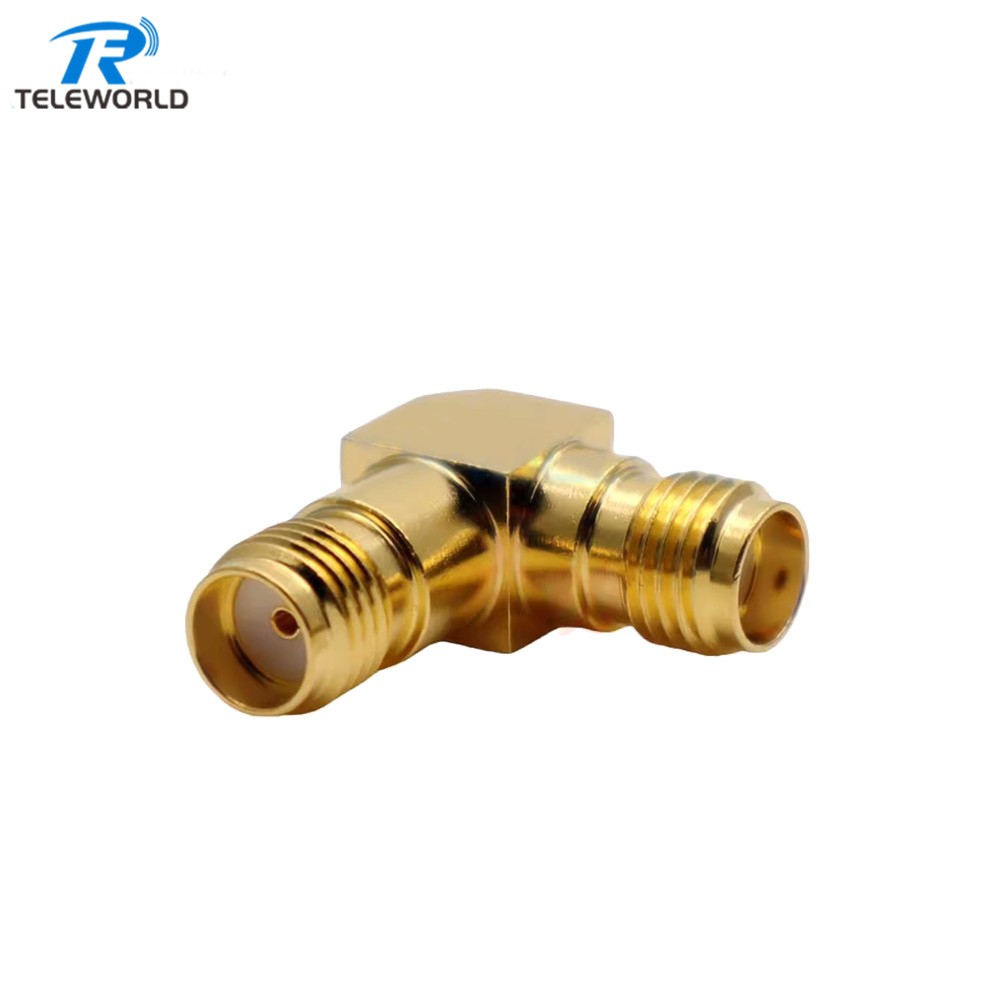

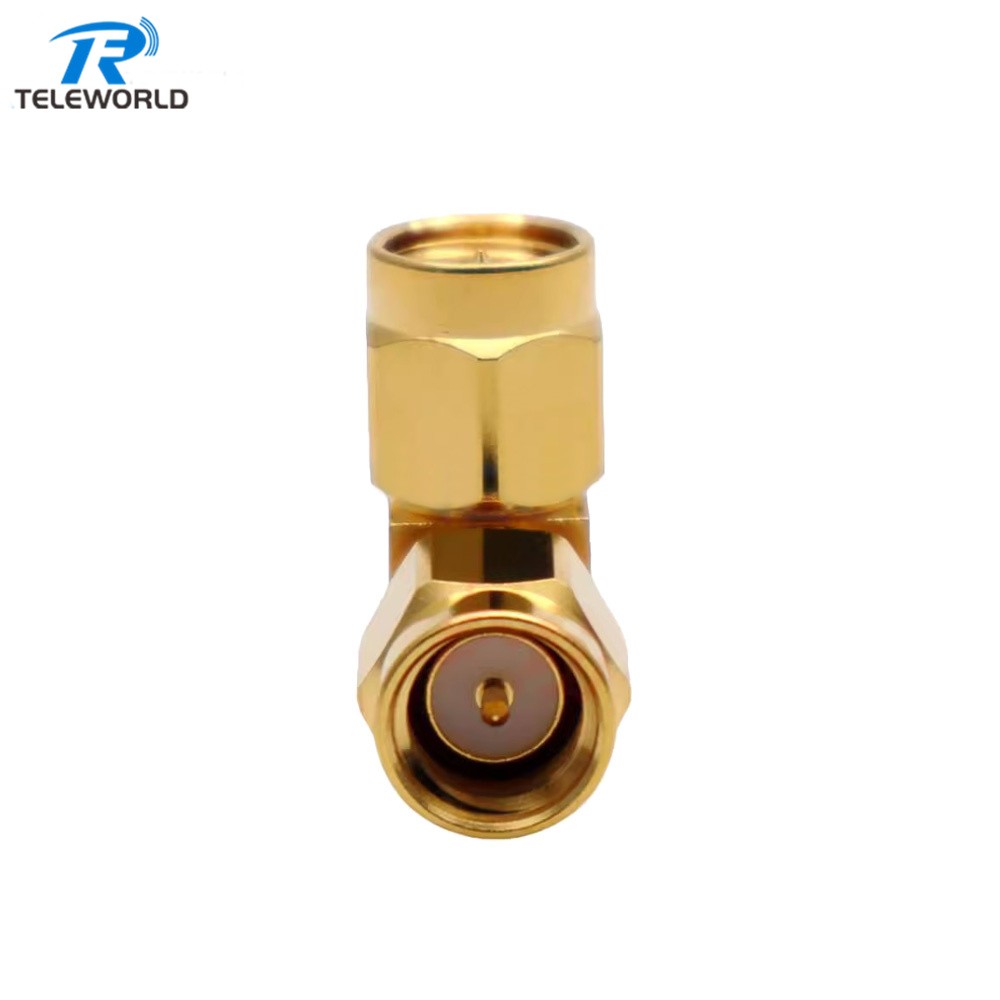

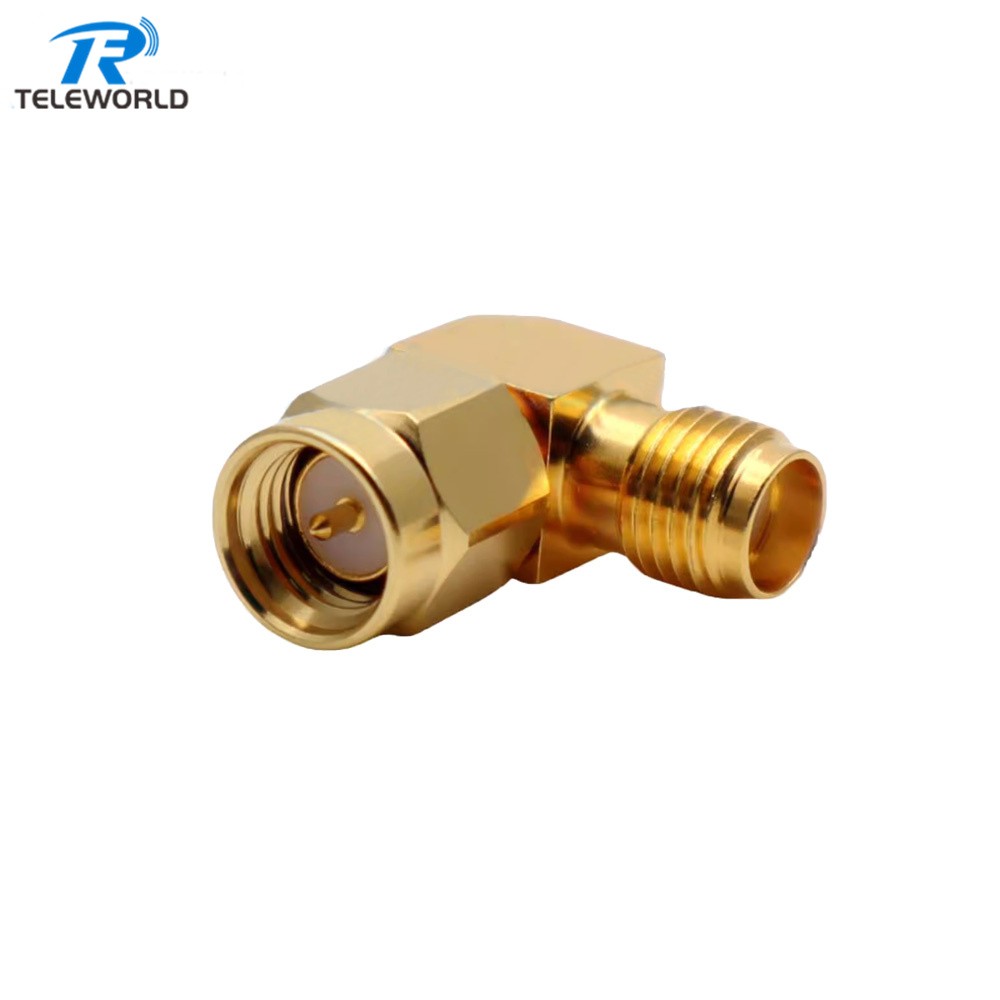

Gold SMA RF Adapter Right Angle J-K J-J K-K 18GHz 50ohm
SMA series adapter
Frequency up to 26.5GHz
Factory supply with fast delivery
Welcome to send inquiry
Adapters SMA
SMA Precision coaxial connector for microwave applications.the maximum frequency is
18GHz.
• Design in accordance with: MIL-STD-348
Standard materials and finish
• Center conductor:beryllium copper,gold plated
• Insulator:PTFE
Electrical Characteristics
• Characteristic Impedance:50Ω
• Frequency range:DC-18GHz
• VSWR: DC-18GHz,1.2:1 max
• Insulation resistance: 5000MΩ min
• Test voltage:1000V
Mechanical
• Coupling torque:1.69N•m max
• Mating cycles: 1000cycles min
Environmental
• Temperature range: -55℃～+155℃
