2.92mm Millimeter wave RF Coaxial Adapter 40GHz 50ohm

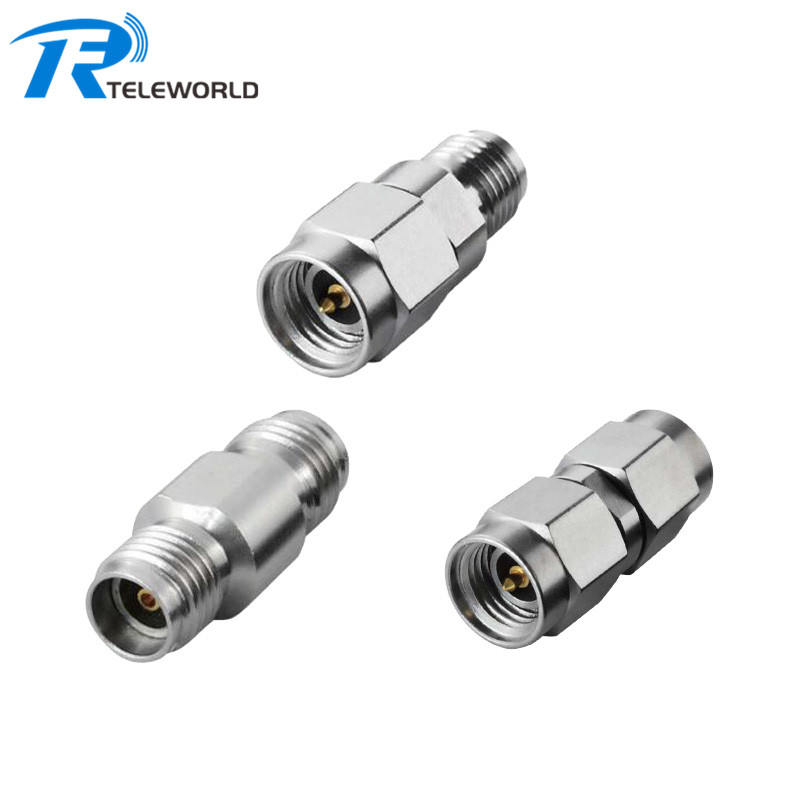

2.92mm series adapter
Frequency up to 40GHz
Factory supply with fast delivery
Welcome to send inquiry

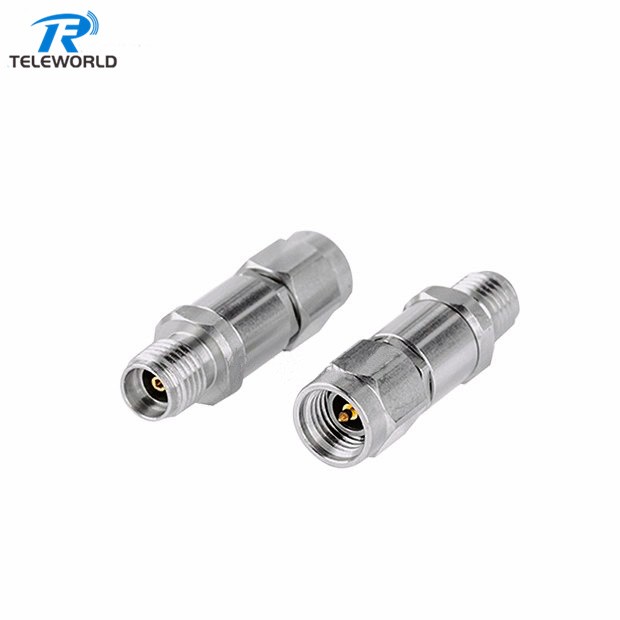

2.92mm male to 2.92mm female

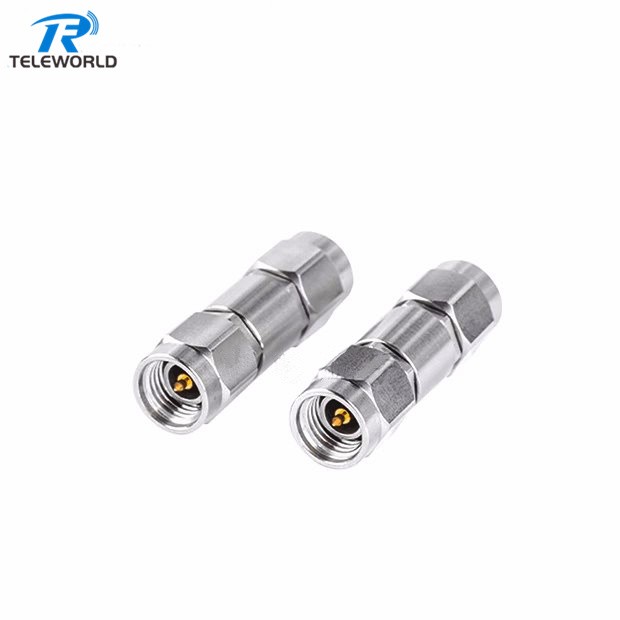

2.92mm male to 2.92mm male

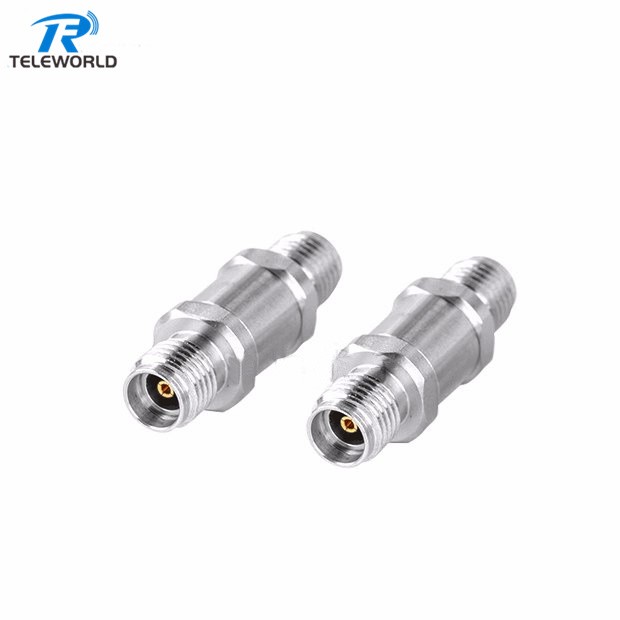

2.92mm female to 2.92mm female
Characteristic Impedance: 50Ω
Operating Frequency: DC ~ 33GHz
Contact Resistance:
Inner Conductor: ≤ 4.0mΩ
Outer Conductor: ≤ 5.0mΩ
Insulation Resistance: ≥ 5000mΩ
Withstanding Voltage: 500V
Voltage VSWR: Typical ≤ 1.15
Durability: 500 times
Center Contact Material and Plating: Copper Alloy, Gold-Plated
Shells and Other Metal Parts: Copper Alloy, Stainless Steel
