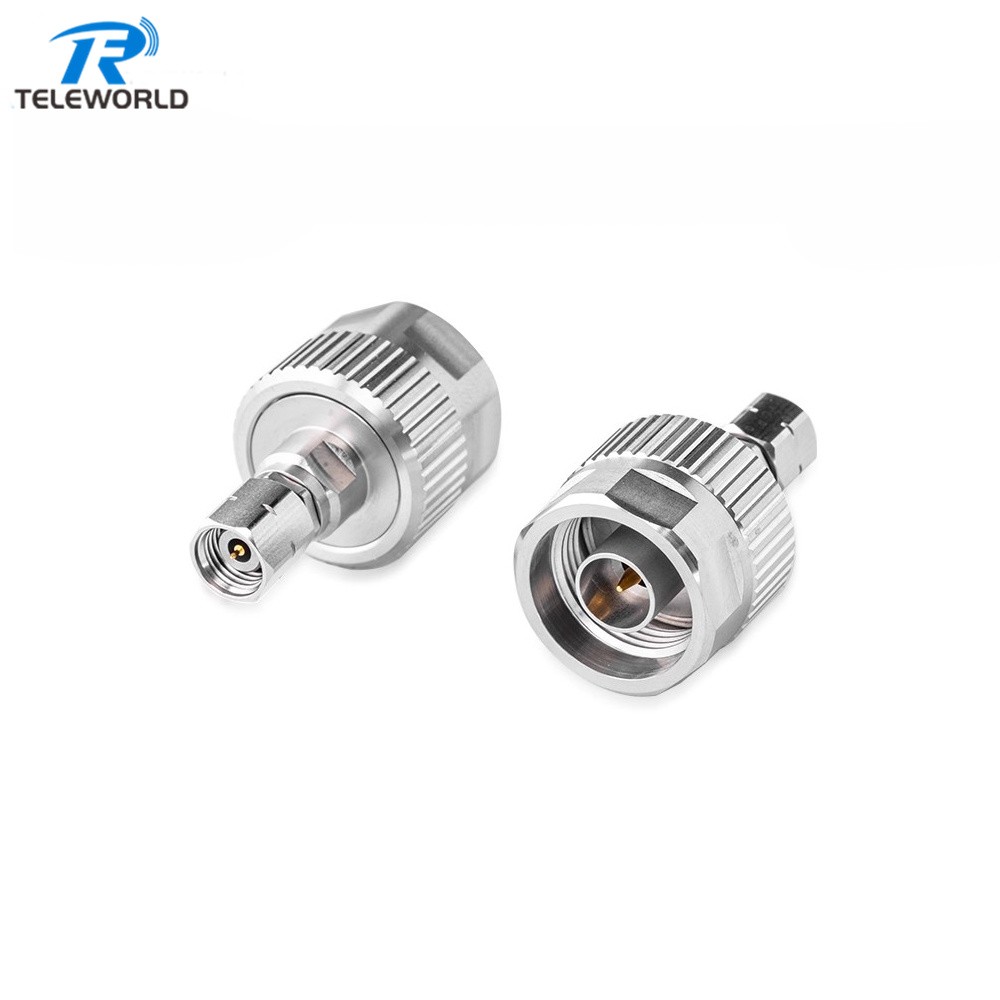

2.92mm to N Millimeter Wave Adapter 18GHz 50ohm
2.92mm to N Adapter
Frequency up to 18GHz
Factory supply with fast delivery
Welcome to send inquiry
2.92mm male to N female
2.92mm male to N male
2.92mm female to N female
2.92mm female to N male
Adapter N Precision coaxial connector for microwave applications.the maximum frequency is 18GHz.
•Design in accordance with: IEEE Std 287 TM -2007
Standard materials and finish
•Center conductor:beryllium copper，gold plated
•Insulator:PEI
•Outer conductor:Stainless steel,Passivated
Electrical Characteristics
•Characteristic Impedance:50Ω
•Frequency range:DC-18GHz
•VSWR: 1.2:1 max
•Insulation resistance: 5000MΩmin
•Test voltage:1000V
Mechanical
•Coupling torque:1.69N• max
•Mating cycles: 500cycles min
Environmental
•emperature range: -60℃～+165℃
