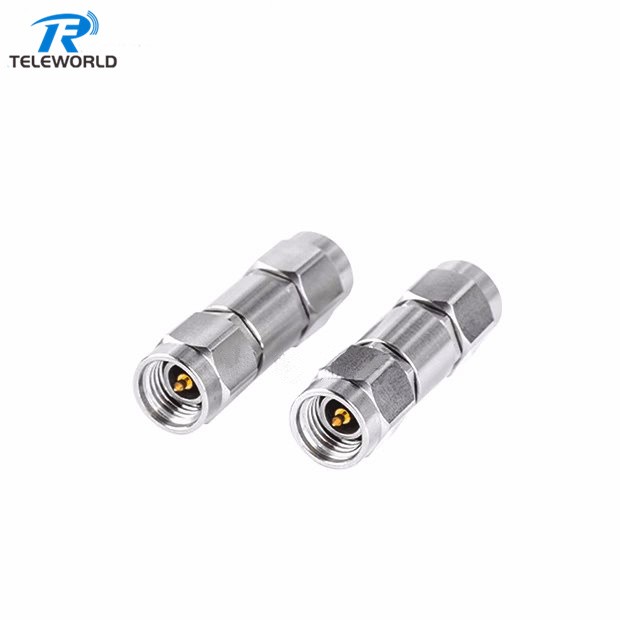

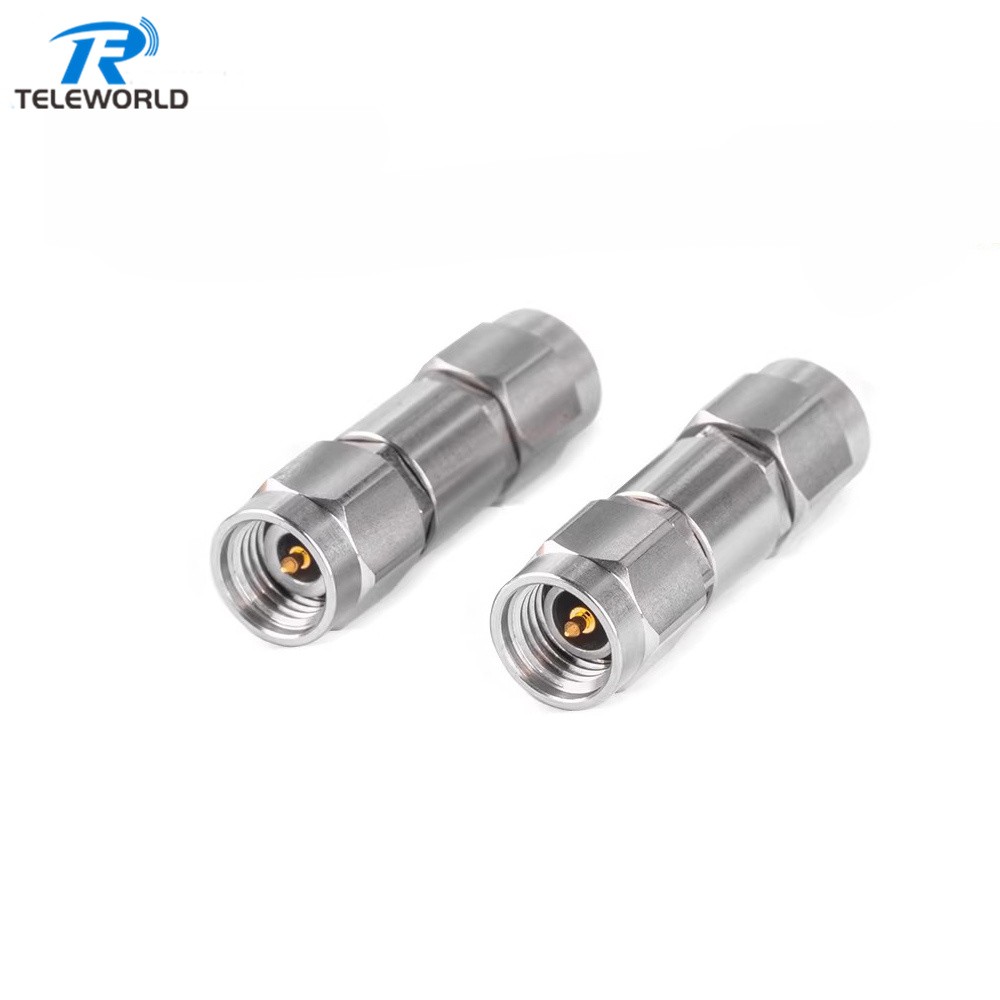

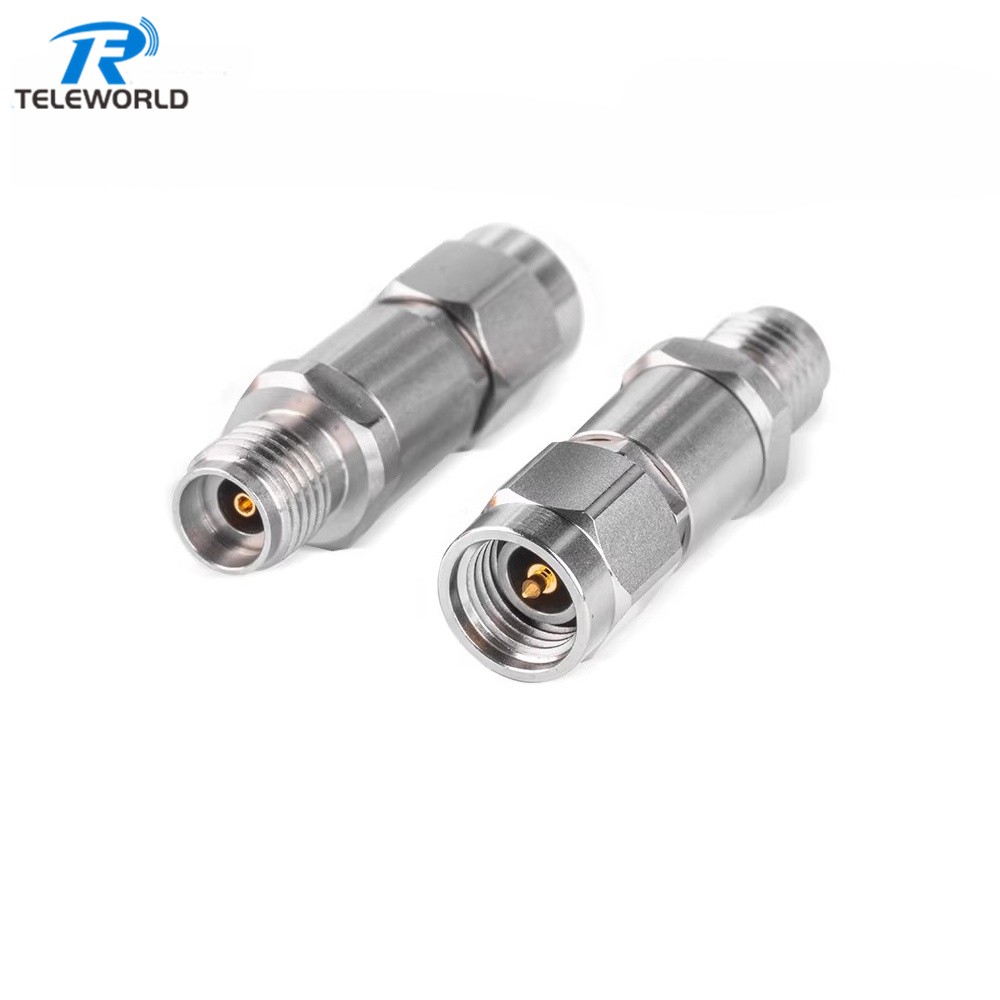

3.5mm 2.92mm 2.4mm RF Coaxial Adapters 26.5 GHz 50ohm

3.5mm male to 2.4mm female

3.5mm male to 2.4mm male

3.5mm female to 2.4mm female
3.5mm female to 2.4mm male

3.5mm male to 2.92mm female

3.5mm male to 2.92mm male

3.5mm female to 2.92mm female
3.5mm female to 2.92mm male

Adapter 3.5mm/2.92mm/2.4mm

3.5/2.92/2.4 Precision coaxial connector for microwave applications.the maximum

frequency is 26.5GHz.

•Design in accordance with: IEEE Std 287 TM -2007

Standard materials and finish

•Center conductor:beryllium copper，gold plated

•Insulator:PEI

•Outer conductor:Stainless steel,Passivated

Electrical Characteristics

•Characteristic Impedance:50Ω

•Frequency range:DC-26.5GHz

•VSWR: 1.2:1 max

•Insulation resistance: 5000MΩmin

•Test voltage:1000V

Mechanical

•Coupling torque:1.69N• max

•Mating cycles: 500cycles min

Environmental

•Temperature range: -55℃～+155℃
