Factory service 3.5mm Millimeter RF Coaxial Adapter 33GHz 50ohm
3.5mm series adapter
Frequency up to 33GHz
Factory supply with fast delivery
Welcome to send inquiry

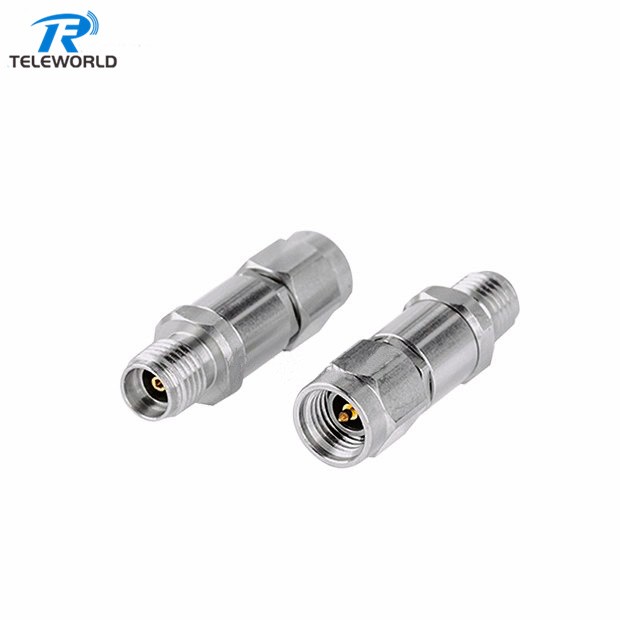

3.5mm male to 3.5mm female

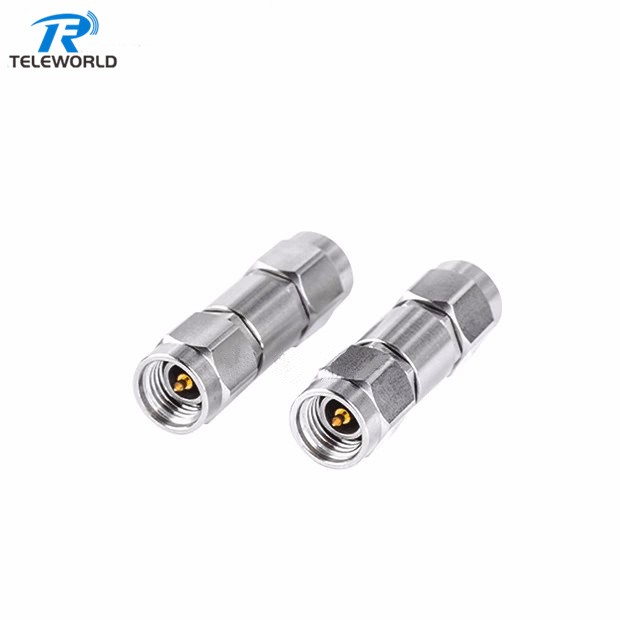

3.5mm male to 3.5mm male

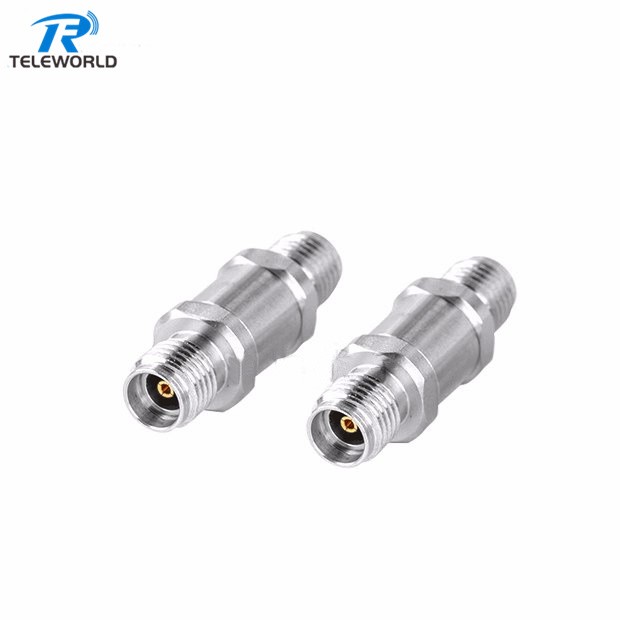

3.5mm female to 3.5mm female
Characteristic Impedance: 50Ω
Operating Frequency: DC ~ 33GHz
Contact Resistance:
Inner Conductor: ≤ 3.0mΩ
Outer Conductor: ≤ 2.0mΩ
Insulation Resistance: ≥ 5000mΩ
Withstanding Voltage: 500V
Voltage VSWR: Typical ≤ 1.15
Durability: 500 times
Center Contact Material and Plating: Copper Alloy, Gold-Plated
Shells and Other Metal Parts: Copper Alloy, Stainless Steel
