Home > Products >> Coaxial Connector&Adapter >> 3.5mm Series

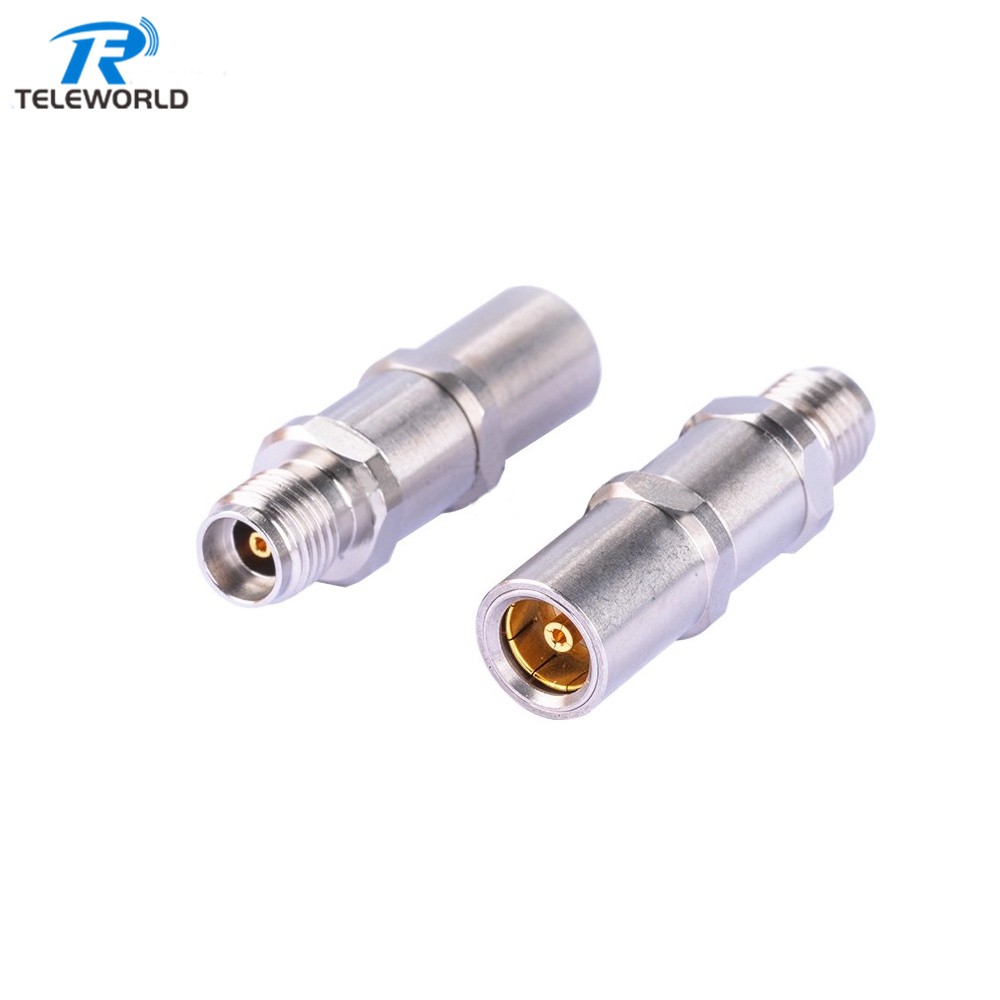

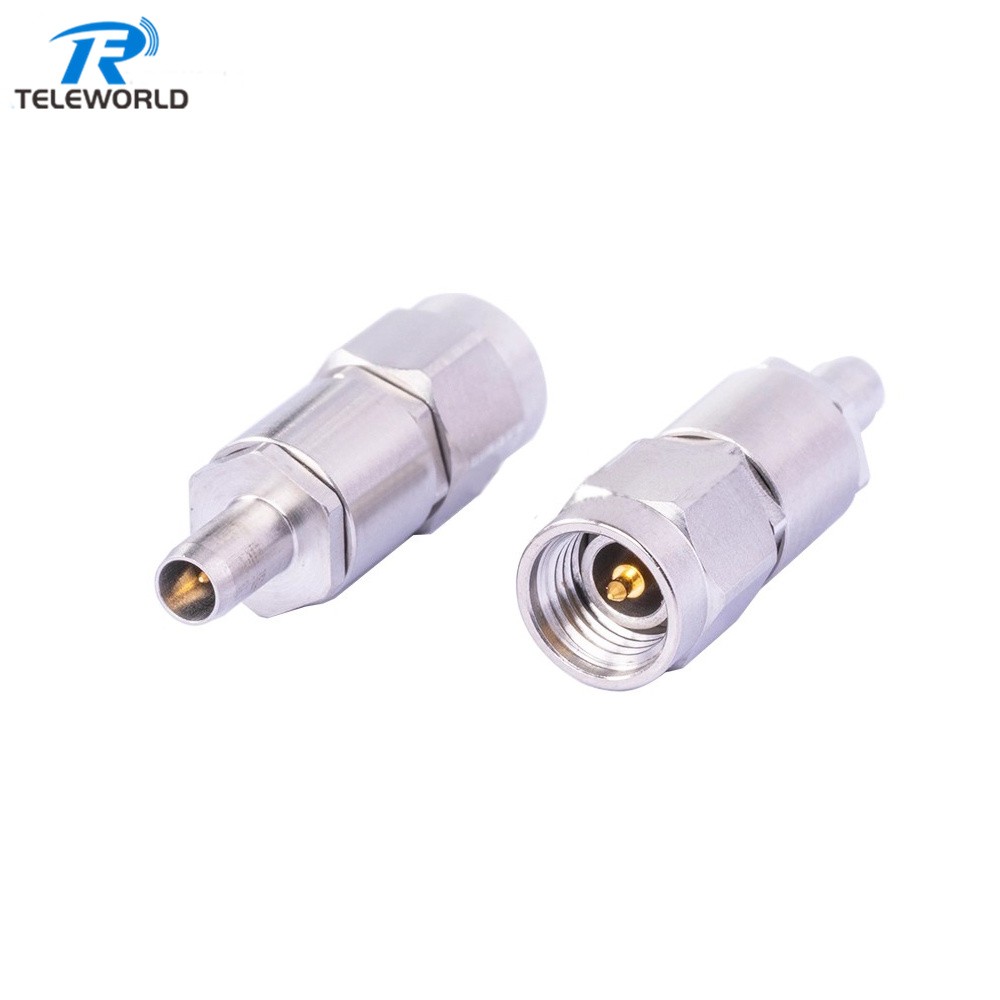

  • 3.5mm to BMA SBMA Adapter 18GHz 50ohm

    • 3.5mm to BMA SBMA Adapter 18GHz 50ohm

    3.5mm to BMA SBMA series adapter
    Frequency up to 18GHz
    Factory supply with fast delivery
    Welcome to send inquiry

    Inquire Now Next Product
    • Product Description

    3.5mm to BMA Series

    3.5 mm to BMA SBMA Precision coaxial connector for microwave applications.the maximum frequency is

    26.5GHz.

    •Design in accordance with: IEEE Std 287 TM -2007

    Standard materials and finish

    •Center conductor:beryllium copper，gold plated

    •Insulator:PEI

    •Outer conductor:Stainless steel,Passivated

    Electrical Characteristics

    •Characteristic Impedance:50Ω

    •Frequency range:DC-18GHz

    •VSWR:1.2:1 max

    •Insulation resistance: 5000MΩmin

    •Test voltage:1000V

    Mechanical

    •Coupling torque:1.69N• max

    •Mating cycles: 1000cycles min

    Environmental

    •Temperature range: -55℃～+155℃

    High quality SMA to SMA Straight Adapter up to 26.5Ghz 50ohm


    Tags: 3.5mm to BMA Adapter, 3.5mm to SBMA Adapter, SBMA Adapter 18GHz, BMA Adapter 18GHz
