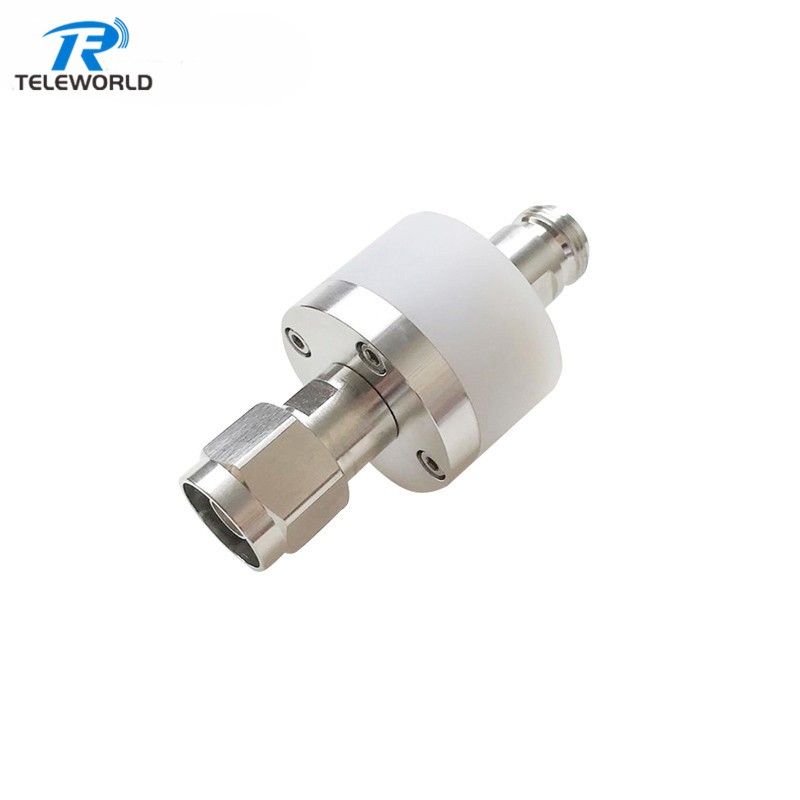

Stainless Steel 2.92mm DC Block 60V 10MHz-40GHz 50ohm
TWDX2.92-60V-40G
Frequency 10MHz-40GHz
SMA,N connector optional
Factory supply with fast delivery
Welcome to send inquiry
DC Blocks are coaxial components that prevent the flow of direct current (DC) while offering minimum interference to RF signals.
They have series capacitors on the input and output of the attenuator that allows RF signal to pass but block DC from passing through.
| 10MHz-40GHz 2.92mm 60V DC Block Technical Specifications | |
| Norminal Impendance | 50ohm |
| Frequency range | 10MHz-40GHz |

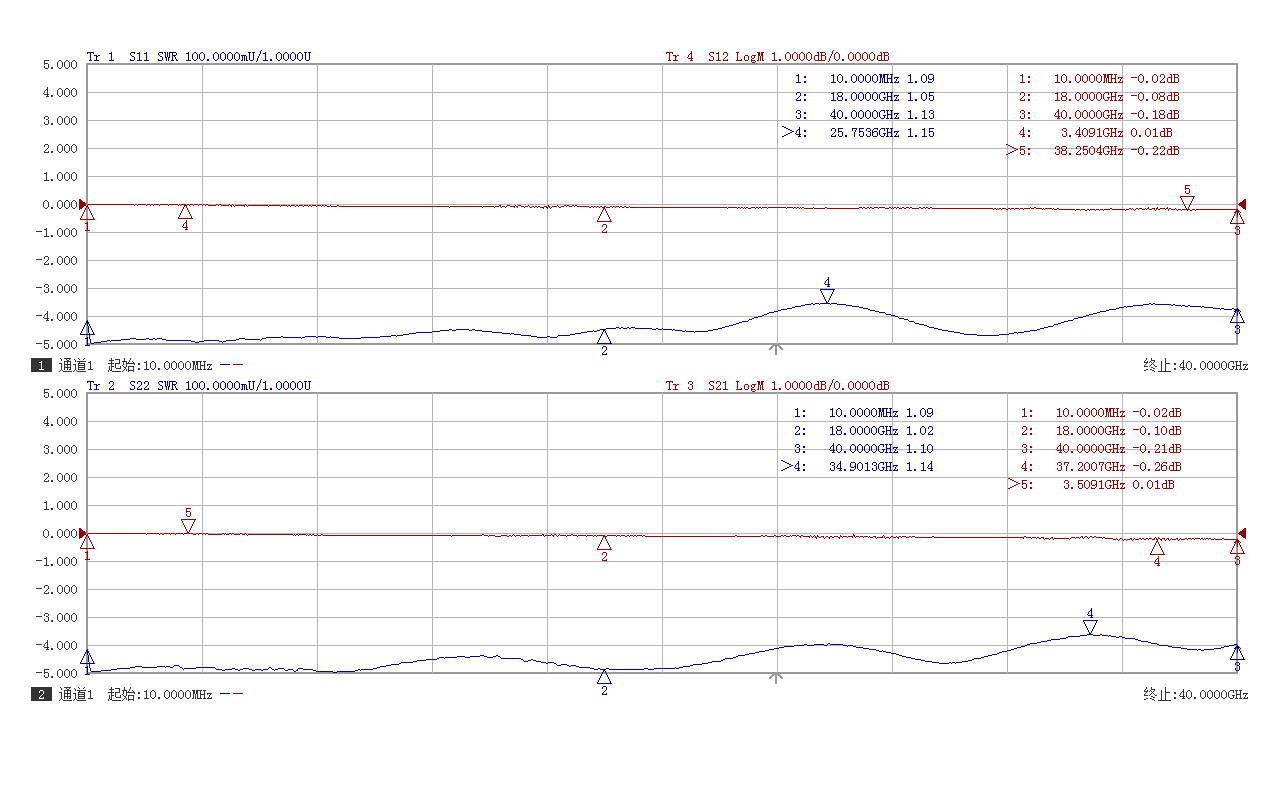

| VSWR | ≤1.3 |
| Temperature range | -55℃ to 125℃ |
| Maximum Voltage | 60V |
| Insertion Loss | ≤0.5dB |
| Connector(Optional) | 2.92mm |
