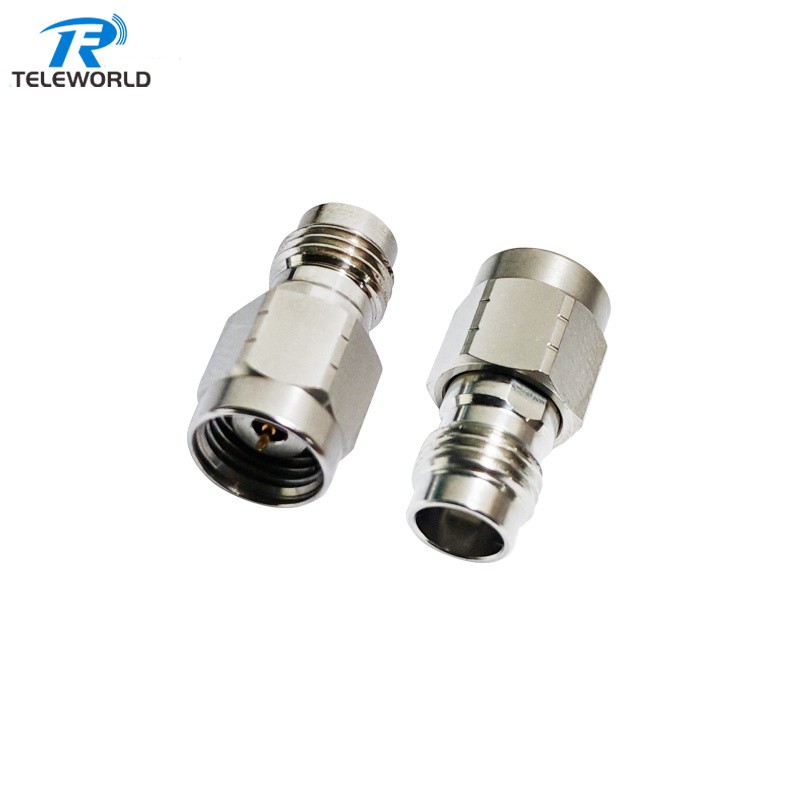

Stainless Steel 60V DC Block 1.85mm Male Female 10MHz-67GHz
TWDX1.85-50V-67G
Frequency 67GHz
SMA,N connector optional
Factory supply with fast delivery
Welcome to send inquiry
DC Blocks are coaxial components that prevent the flow of direct current (DC) while offering minimum interference to RF signals.
They have series capacitors on the input and output of the attenuator that allows RF signal to pass but block DC from passing through.

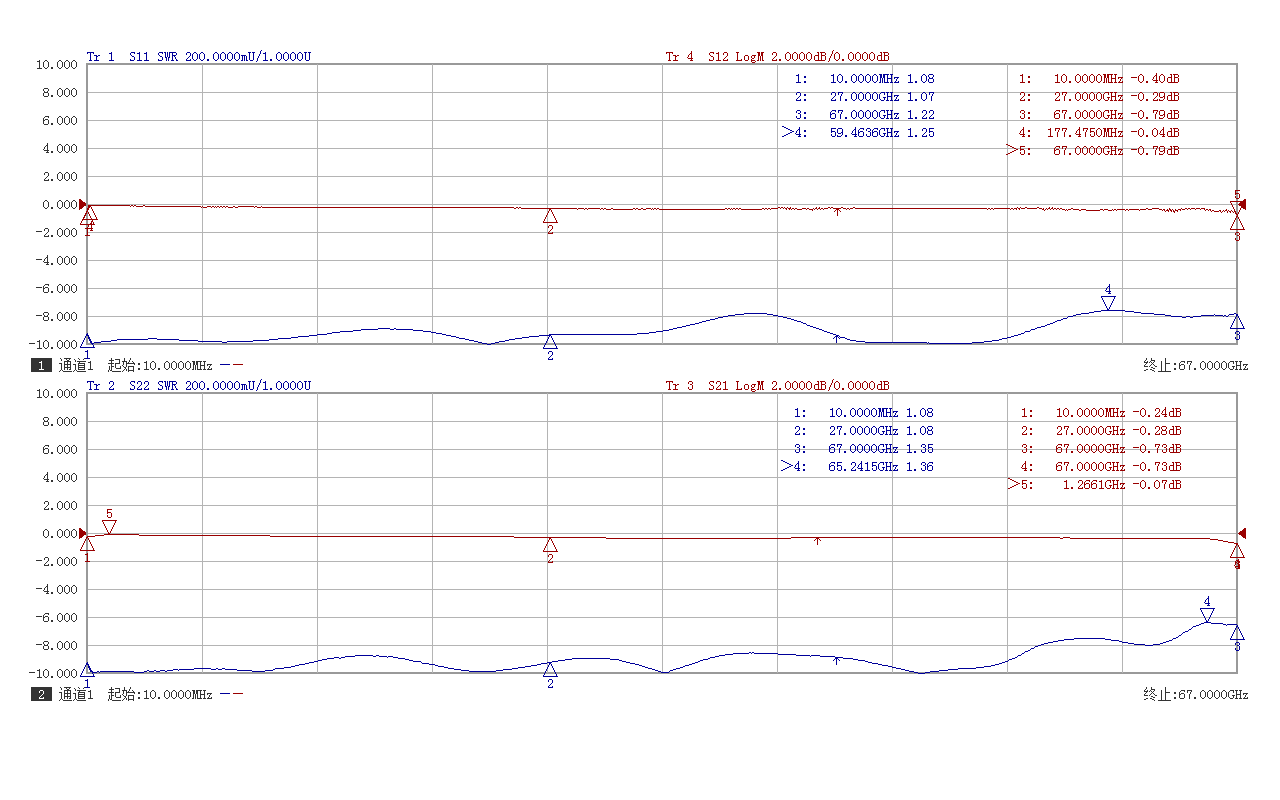

| 10MHz-67GHz 1.85mm 50V DC Block Technical Specifications | |
| Norminal Impendance | 50ohm |
| Frequency range | 10MHz-67GHz |
| VSWR | ≤1.5 |
| Insertion loss | 0.9dB Max |
| Temperature range | -55℃ to 100℃ |
| Maximum Voltage | 60V |
| Connector (optional) | 1.85male to 1.85male |
