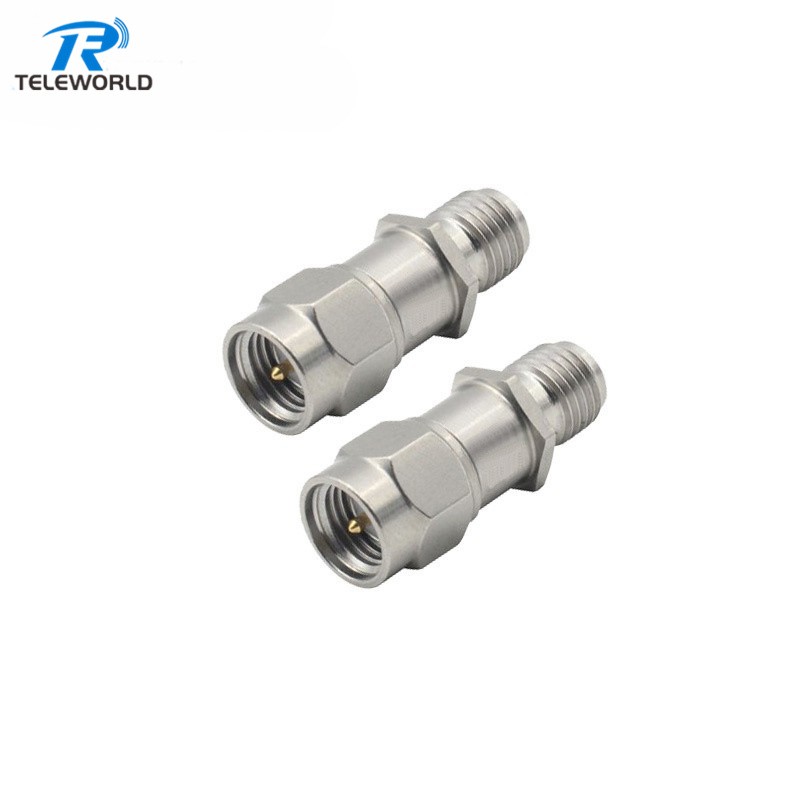

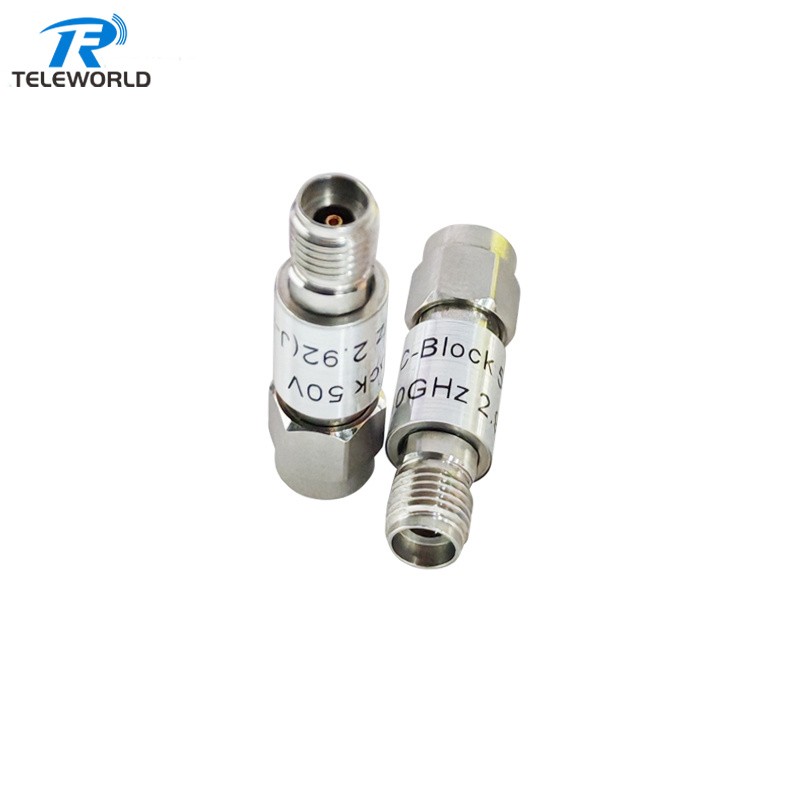

2W SMA DC Block 50V 100V 200V 6GHz 8.5GHz 12.4GHz 18GHz 26.5GHz
TWDS-50V-6G
Frequency 0.01-6GHz
SMA,N connector optional
Factory supply with fast delivery
Welcome to send inquiry
DC Blocks are coaxial components that prevent the flow of direct current (DC) while offering minimum interference to RF signals.
They have series capacitors on the input and output of the attenuator that allows RF signal to pass but block DC from passing through.
SMA DC Block Technical Specifications | |
Norminal Impendance | 50ohm |
Frequency range | 10MHz-6GHz(18G/26.5GHz optional) |
VSWR | 6GHz≤1.2 18Ghz≤1.3 |
Power rating | 2W |
Temperature range | -55℃ to 100℃ |
Maximum Voltage | Normal 50V(100V/200V/250V optional) |
Insertion Loss | 4Ghz≤0.2dB 8GHz≤0.3dB 12Ghz≤0.5dB 18Ghz≤0.6dB |
