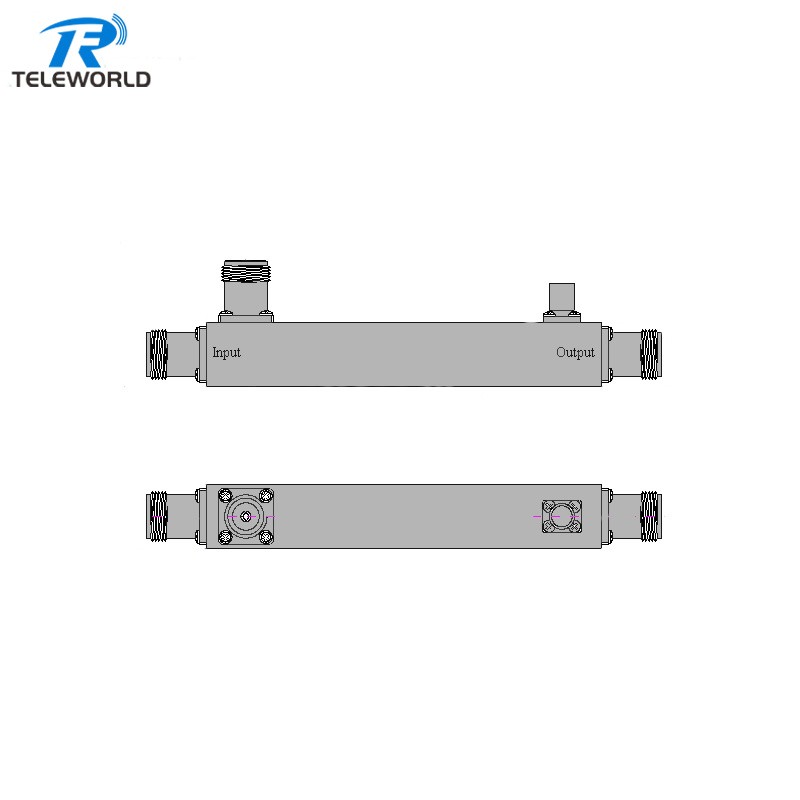

2000-8000MHz 30W Directional Coupler N Female Connector 10dB 20dB 30dB 50ohm
TWDC-30N10-2-8G
Directional couplers are an important type of signal processing device. Their basic function is to sample RF signals at a predetermined degree of coupling, with high isolation between the signal ports and the sampled ports — which supports analysis, measurement and processing for many applications.
| SN | Parameters | Specifications |
| 1 | Frequency Range | 2000～8000 MHz |
| 2 | Insertion Loss | ≤ 1dB |
| 3 | VSWR Primary | Max. 1.25 |
| 4 | VSWR Secondary | Max. 1.25 |
| 5 | Directivity | Min. 18 dB |
| 6 | Nominal Coupling | 10±1.0dB(20dB 30dB optional) |
| 7 | Impedance | 50 Ohms |
| 8 | Input/Output Connectors | N-Female |
| 9 | Power Rating | 30W |
| 11 | Operation Temperature | -45℃ ~ +85℃ |
| 12 | Surface Finishing | Sandblasting natural color conductive oxide |
