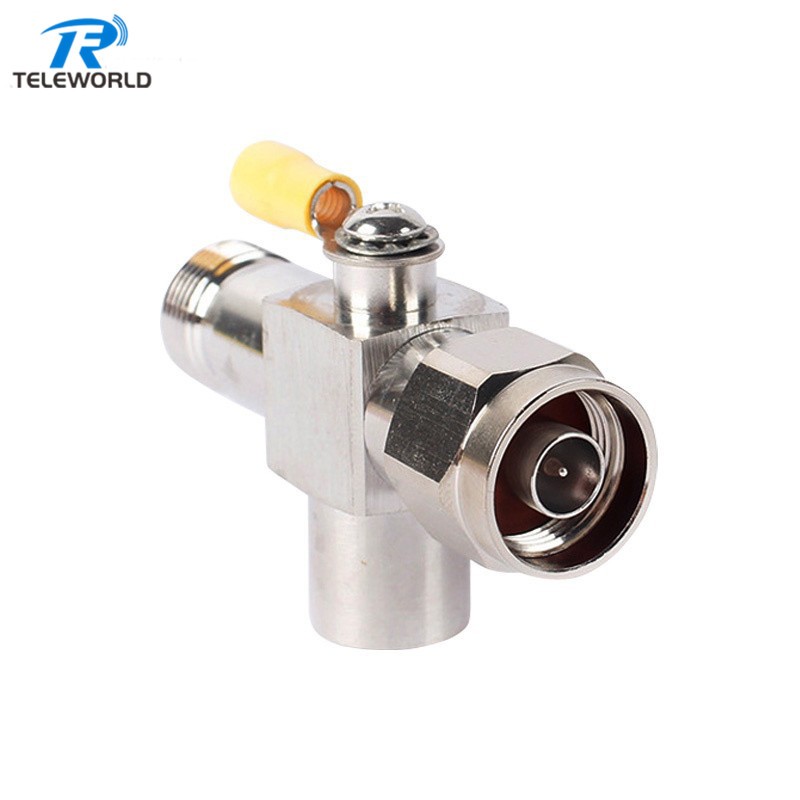

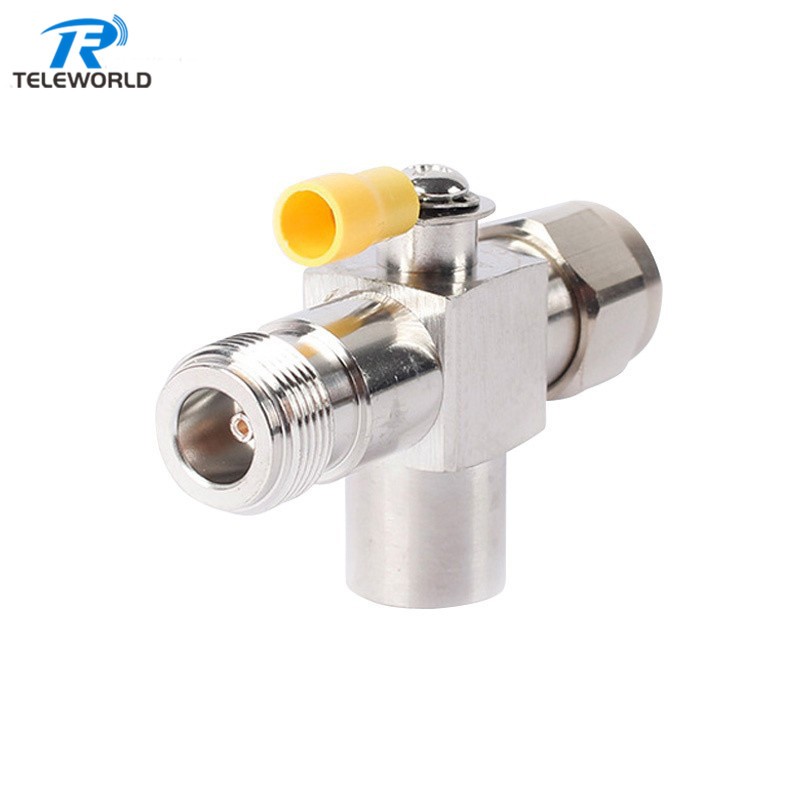

5G 1/4λ Surge Protector Quarter-Wave Lightning surge protector N male to female 50ohm
TWSP1/4NJK
1/4λ Surge Protector
2200-6000MHz
Factory supply with fast delivery
Welcome to send inquiry
Lighting strike by lightning means a calamity to the radio equipment.At the severalty microseconds twinkling of any eye,well up to the dozens of kilovltage per meter,whole system bear enormour.It is with lightning arrester(pass electricity of protecting device) must protecting nature,preventative enclosure fully.Correct exertion,guarantee system high-efficience operation
| Electrical | ||||
| Characteristic Impedance | 50 ohm | |||
| Frequency Range | 2200-6000MHz | |||
| VSWR | ≤1.25 | |||
| Transmission power | 500W | |||
| Dielectric Withstanding Voltage | ≥2500V RMS,50hz,at sea level | |||
| Working Voltage | ≤1500V RMS,50Hz,at sea level | |||
| Maximum impluse discharge current | 30kA | |||
| Dielectric Resistance | ≥5000MΩ | |||
| Contact Resistance | Center Contact | 1≤mΩ | ||
| Outer Contact | 1≤mΩ | |||
| Environmental & Mechanical | ||||
| Temperature Range | -40℃ ~ +85℃ | |||
| Relative humidity | ≤95%（Temperature 25℃±2℃） | |||
| Durability | ≥500 cycles | |||
| ROHS compliant | Full ROHS compliance | |||
| Material and Plating | ||||
| Material | Plating | |||
| Body | Brass | Tri-alloy | ||
| Insulator | PTFE | — | ||
| Center conductor | Brass | Ag | ||
| Screw nut | Stainless steel | — | ||
| Spring pad | Stainless steel | — | ||
| Washer | Stainless steel | — | ||
