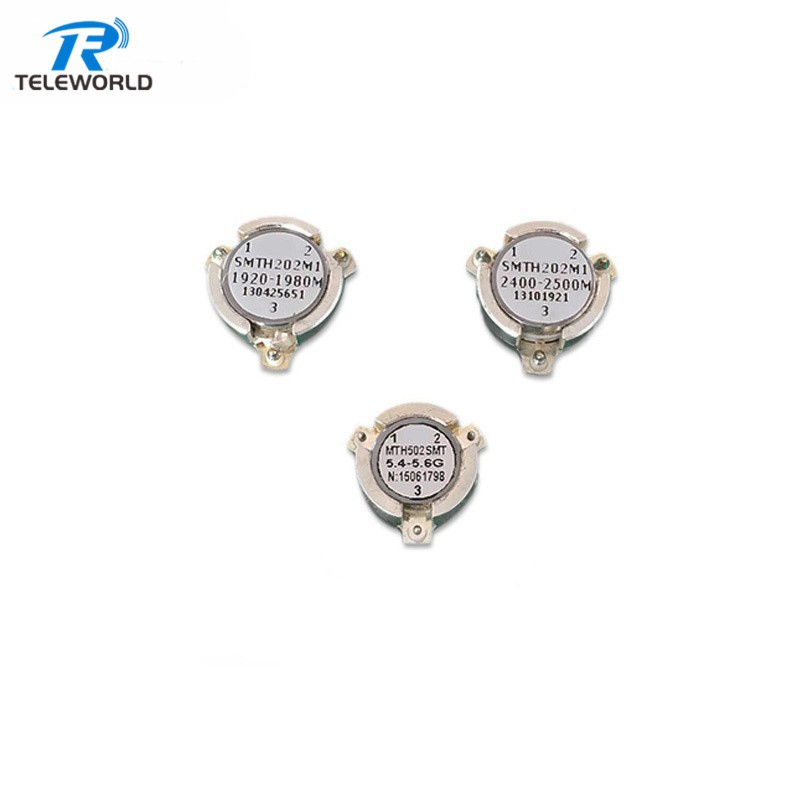

The frequency of our Circulators covers 80MHz~40GHz with small size, bandwidth, stable performance, wide temperature range (-55~+125°C), high isolation, low loss, low standing wave,high The characteristics of intermodulation and high power.
Frequency covers 80MHz~40GHz
Factory service with Fast lead time
OEM&ODM Service support
| Model No. | Frequency Range (GHz) | Band Width (MHz) | Insertion Loss (db.Max) | Isolation (db.Min) | VSWR (Max) | Operating Temperature (℃) | Size L*W*H (mm) | Connector Type |
| TWH48 | 4.0-6.0 | 300 | 0.3 | 23 | 1.15 | -30~+70 | 89*108*63.5 | WR187 |
| With sealing groove | ||||||||
| TWH58 | 5.0-7.0 | 300 | 0.3 | 23 | 1.15 | -30~+70 | 90*90.5*62 | WR159 |
| TWH70 | 5.9-8.5 | 300 | 0.3 | 22 | 1.2 | -30~+70 | 70*70*49 | WR137 |
| TWH84-60 | 7.7-8.4 | Full | 0.4 | 25 | 1.15 | -40~+80 | 60*65*47.8 | WR112 |
| TWH100-48 | 8-12.4 | 200 | 0.3 | 25 | 1.15 | -40~+80 | 48*53*42 | WR90 |
| 1000 | 0.3 | 23 | 1.15 | |||||
| TWH120-42 | 10-15 | 300 | 0.2 | 25 | 1.15 | -40~+80 | 42*48*38 | WR75 |
| 1000 | 0.3 | 25 | 1.15 | |||||
| TWH140-40 | 12-18 | 400 | 0.3 | 25 | 1.15 | -40~+80 | 40*40*33.3 | WR62 |
| 1000l | 0.4 | 23 | 1.2 | |||||
| TWH180-32 | 14.5-22 | 1000 | 0.3 | 23 | 1.2 | -40~+80 | 32*35*30.2 | WR51 |
| TWH220-24 | 17.6-26.7 | 1000 | 0.3 | 25 | 1.2 | -40~+80 | 24*27*22.4 | WR42 |
| 2000 | 0.4 | 20 | 1.25 | |||||
| TWH260-22.3 | 21.7-33.0 | 1000 | 0.3 | 23 | 1.2 | -40~+80 | 22.3*27*21.2 | WR34 |
| TWH320-21 | 26.5-40 | 500 | 0.3 | 25 | 1.15 | -40~+80 | 21*24*19.1 | WR28 |
| 1000 | 0.3 | 23 | 1.2 | |||||
| 3000 | 0.5 | 18 | 1.3 | |||||
| TWH320-10 | 26.5-40 | 500 | 0.3 | 25 | 1.15 | -40~+80 | 10*24.5*19.1 | WR28 |
New products always update under line and not always online in time, if you can not find what you want above.please contact us directly.we will reply very fast.
